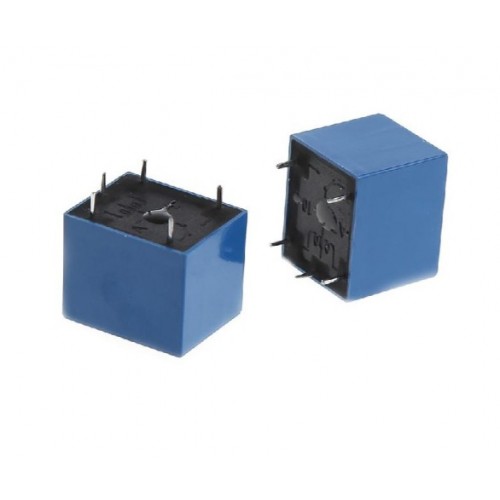

5V 10AMP Sugar Cube SPDT Relay HL Blue Color

Write a review | 0 reviews

Stock: 90
Availability: InStock priceValidUntil: 2026-12-06
SKU: 8552 | DAG404

Rs. 22.07 (inc GST)
Rs.18.70 + GST
Qty : Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

HL 5V 10AMP Sugar Cube SPDT Relay

HL 5V 10A Relay for SPDT applications, compact design, PCB mountable.

The HL 5V 10AMP Sugar Cube SPDT Relay is designed for efficient performance in various electronic applications. It operates on a 5V DC coil voltage and can switch currents up to 10A. This relay features a compact design, making it perfect for PCB mounting in devices like home appliances and automotive systems. The SPDT configuration allows for flexibility in circuit design by providing Normally Open (NO) and Normally Closed (NC) contacts.

This 5V 10AMP Sugar Cube SPDT Relay is encased in a robust blue plastic housing, ensuring durability and reliability. With a maximum switching voltage of 250VAC, it meets the needs of industrial equipment and consumer electronics. Its quick operate time of ≤10 ms and release time of ≤5 ms contribute to its efficiency in control applications.

Ideal for various sectors, the HL 5V 10AMP Sugar Cube SPDT Relay is perfect for home appliances, automotive applications, and industrial equipment. Its compact size and high switching capacity make it a valuable component in modern electronic designs.

Explore the reliable offerings from DNA in the category of Relay, Relay Socket & SSR. We stock high-quality products from trusted brands like HL. Check other Relay, Relay Socket & SSR that we have in stock.

At DNA, we cater to the needs of Indian electronics buyers. If you're searching for specific components and can't find them, we can import them for you. We support both retail and bulk orders. Consider related items like Microcontrollers, Development Modules, Sensors, IGBTs, and Analog ICs. Contact Us.

Features of HL 5V 10AMP Sugar Cube SPDT Relay

Compact Size
High Switching Capacity
SPDT Configuration
PCB Mountable

Specification of HL 5V 10AMP Sugar Cube SPDT Relay

Coil Voltage: 5V DC
Contact Rating: 10A at 120VAC or 24VDC
Maximum Switching Voltage: 250VAC / 30VDC
Coil Resistance: Approximately 70 ohms
Operate Time: ≤10 ms
Release Time: ≤5 ms
Insulation Resistance: ≥100 MΩ at 500VDC
Dielectric Strength: 1500VAC between coil and contacts
Dimensions: Approximately 19.0 x 15.5 x 15.0 mm

Applications of HL 5V 10AMP Sugar Cube SPDT Relay

Home Appliances
Automotive
Industrial Equipment
Consumer Electronics

Package Includes

1 X HL 5V 10AMP Sugar Cube SPDT Relay

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
