RWH-SH-112D Goodsky 12 Volt Cube Relay

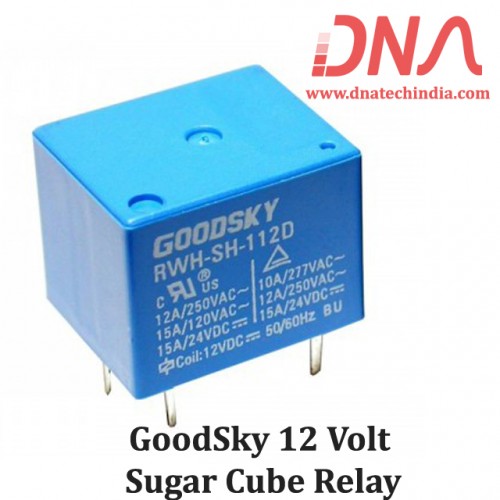

Goodsky 12 Volt 7 Ampere Sugarcube Relay RWH-SH-112D

This is a high quality Goodsky Make 12 Volt sugarcube relay. RWH-SH-112D PCB mount sugarcube relay can be used for switching High voltage 230 Volt devices and has current rating upto 7 ampere.

Small compact size and light weight cube relay.This relay is plastic sealed under high temperature condition and various chemical solutions. Goodsky RWH-SH-112D Relay is approved C-UL & TÜV safety standard.

DNA Solutions has various types of Relay, Relay Socket and SSR. Check out our complete collection of Relay, Relay Socket and SSR.

Feature of Goodsky RWH-SH-112D 12V Relay

• High switching current up to 15 Ampere in small size.

• Sugar-Cube relay suitable for various applications.

• C-UL & TÜV safety standard approved.

• Class F insulation system.

• Highly adapt to harsh conditions with high temperature and vibration.

• Halogen Free series available.

Application of Goodsky RWH-SH-112D 12V Relay

• Domestic Appliances

• Office Machines

• Audio Equipment

• Coffeepot

• Control Units

Performance (at Initial Value)

• Contact Resistance : 100mΩ Max.@1A,6VDC

• Operate Time :10 mSec. Max.

• Release Time : 5 mSec. Max.

• Dielectric Strength : Between Coil & Contact (1,000VAC at 50/60 Hz for one minute.)/(Between Contacts : 500VAC at 50/60 Hz for one minute)

• Surge Strength : 3,000 Volts (between Coil  & Contact 1.2x50µSec.)

• Insulation Resistance : 100 MegaΩ Min. at 500VDC.

• Max. On/Off Switching : Electrical(6 Cycles per Minute)/Mechanical (300 Cycles per Minute)

• Temperature Range : -30～85°C

• Humidity Range : 45～85% RH.

• Coil Temperature Rise : 35°C Max.

• Vibration : Endurance (10 to 55 Hz dual)/ amplitude width 1.5mm.

• Error Operation : 10 to 55 Hz dual/amplitude width 1.5mm.

• Shock : Endurance (1,000 m/S2)/Error Operation(100 m/S2)

• Life Expectancy : Mechanical(107 Operations at No Load condition)/Electrical(105 Operations at Rated Resistive Load)

• Weight : About 9 g.

Safety Standard & File Number

• UL & C-UL : E141060

• TÜV : R09854380

• CQC : 09002037102/ 07001018731
