DC to AC 25 Amp SSR (Unison)

Unison DC to AC 25 Ampere Solid State Relay

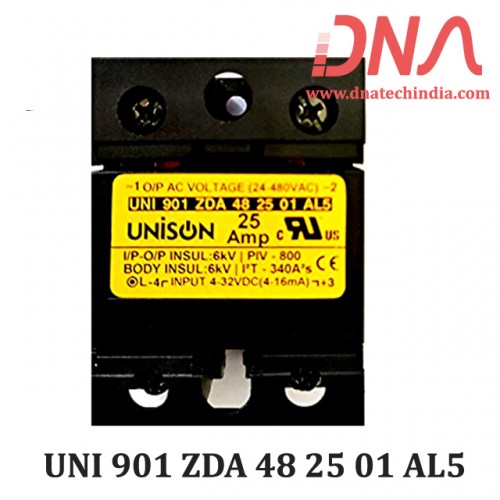

UNI 901 ZDA 48 25 01 AL5 Solid State Relay for DC to AC applications with 25 Amp load current and 800V peak input.

The Unison DC to AC 25 Ampere Solid State Relay is designed for reliable switching in various electronic applications. It features a zero cross over design, ensuring smooth operation without sparking. With a load current rating of 25 Amperes at 40°C, this SSR is suitable for controlling AC loads efficiently. Its solid-state nature guarantees a longer operational life, making it a robust choice for demanding environments.

This Solid State Relay operates with an input voltage range of 4-32 VDC and can handle output voltages from 24 to 480 VAC. Its inbuilt surge voltage protection of 2700Vrms adds an extra layer of reliability, while the body insulation of 6kV ensures safety during operation. The Unison DC to AC 25 Ampere Solid State Relay is ideal for applications in industrial automation, HVAC systems, and home automation.

Choose the Unison DC to AC 25 Ampere Solid State Relay for a silent, efficient, and durable switching solution. Its advantages over electromechanical relays make it a preferred choice for engineers and technicians in India. Explore our full range of Solid State Relays for various applications.

Discover high-quality products from DNA, the trusted retailer for Unison. Explore our range of Relay, Relay Socket & SSR to find the right solutions for your electronic needs. Check other Relay, Relay Socket & SSR that we have in stock.

If you're an electronics buyer in India and need specific components, reach out to us. We can help you find parts like Nextion Displays, LCDs, DC to DC Converter Modules, and more. We also offer import services for hard-to-find items. Contact Us

Features of Unison DC to AC 25 Ampere Solid State Relay

• Zero cross over design
• High load current of 25 Amperes
• Input voltage range of 4-32 VDC
• Surge voltage protection of 2700Vrms
• Silent operation

Specification of Unison DC to AC 25 Ampere Solid State Relay

• Model: 901 - 25 Ampere
• Input Voltage: 4-32 VDC
• Input Current: 4-16 mA
• Output: 24 - 480 VAC (47-63Hz)
• Load Current: 10 Ampere @40°C
• PIV: 800V Pk
• Body Insulation: 6kV for 1Min
• I/P to O/P Insulation: 6kV for 1Min
• Long Life Cycle up to 10^11 Cycle

Applications of Unison DC to AC 25 Ampere Solid State Relay

• Industrial automation
• HVAC control
• Home automation
• Motor control
• Lighting control

Package Includes

• 1 X Unison DC to AC 25 Ampere Solid State Relay
