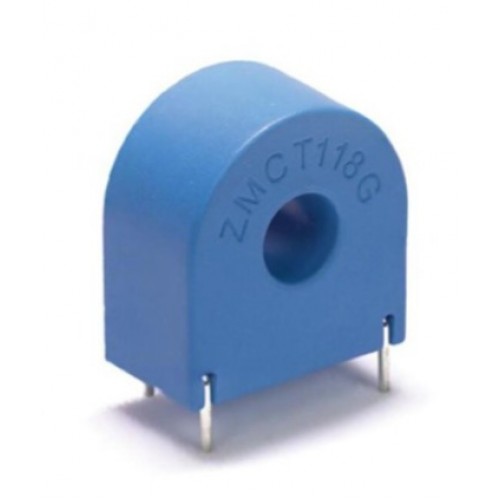

ZMCT118G 5 Ampere Current Transformer – PCB Mounting
-
Rs. 88.26 (inc GST)
Rs.74.80 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
ZMCT118G 5 Ampere Current Transformer – PCB Mounting
ZMCT118G 5 Ampere Current Transformer – PCB Mounting
The ZMCT118G is a compact current transformer designed for accurate measurement of AC currents up to 5 amperes. It is designed for direct PCB mounting, making it ideal for integration into a variety of electrical and electronic systems that require current sensing. It is widely used in applications like energy meters, smart power systems, and protection devices. Provides galvanic isolation between the high-current primary circuit and the low-current output. High-quality ferrite core for precise current measurement. Proportional to the measured AC current, typically a low-level analog signal that can be fed to an ADC or other measurement systems.
DNA solutions, Nashik has various types of Transformer's. Check out our complete collection of Transformer's.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features of ZMCT118G 5 Ampere Current Transformer – PCB Mounting
- High Precision: Offers accurate measurement of AC currents up to 5A with minimal error.
- Galvanic Isolation: Provides safe electrical isolation between the primary high-current circuit and the output.
- Compact Size: Designed for PCB mounting, making it suitable for compact electronic circuits and devices.
- Easy Integration: The output is a low-level voltage signal, which can be easily integrated into microcontroller or ADC circuits.
- Low Power Loss: Minimizes the energy lost during current measurement.
Specifications of ZMCT118G 5 Ampere Current Transformer – PCB Mounting
- Primary Current Range: 0 to 5A AC
- Turns Ratio: Typically 1:1000 (depending on model)
- Output Signal: 0 to 5V (proportional to the primary current)
- Accuracy: High accuracy, typically within ±0.5% to ±1%
- Frequency Range: 50Hz – 60Hz
- Operating Voltage: Low voltage for safe operation on PCB
- Dielectric Strength: Up to 1000V AC between primary and secondary
- Operating Temperature Range: -40°C to 85°C
Package Includes
- 1 x ZMCT118G 5 Ampere Current Transformer – PCB Mounting
