TLP3064 Photocoupler IC

TLP3064 Photocoupler IC

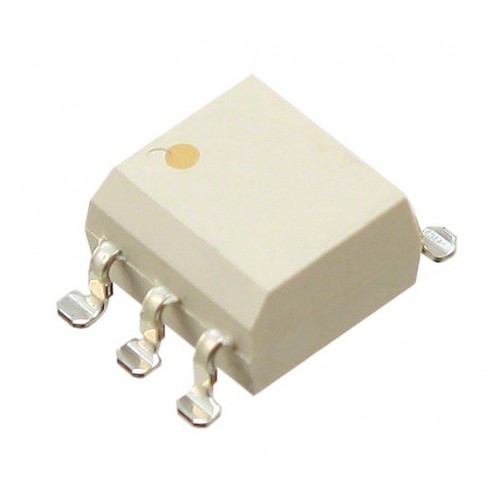

The TLP3064 is a photocoupler IC manufactured by Toshiba, incorporating a GaAs infrared LED and a phototriac detector. It is designed to enable signal isolation and control in AC circuits, particularly useful in applications requiring noise immunity and electrical isolation. It operates by converting an electrical input signal into an optical signal, which is then converted back into an electrical signal on the output side.

DNA solutions, Nashik has various types of Photocoupler IC's. Check out our complete collection of Photocoupler IC's.

• Input-Output Isolation: Provides high isolation voltage between input and output

• Phototriac Output: Capable of controlling AC loads such as motors and lights

• High Noise Immunity: Reduces susceptibility to electromagnetic and RF interference

• Compact Package: Available in a small DIP (Dual Inline Package) design for easy integration

• Wide Input Current Range: Operates efficiently with varying input currents

Specifications of TLP3064 Photocoupler IC

• Input LED Forward Voltage (Vf): ~1.2V (typical)

• Input Current (If): Up to 20mA (standard operation)

• Maximum Peak Forward Current: ~50mA

• Trigger LED Current (Ift): 10mA (typical)

• Off-State Voltage (VDRM): 600V (typical)

• On-State Current (It): ~100mA (typical)

• Isolation Voltage: ~2500Vrms (minimum)

Applications of TLP3064 Photocoupler IC

• AC Load Switching

• Home Appliances

• Industrial Automation

• Signal Isolation

• Motor Drives

Package Includes

      1 x TLP3064 Photocoupler IC
