• QC962-8A Mornsun Hybrid Integrated IGBT Driver Module

Product Images are shown for illustrative purposes only and may differ from actual product.

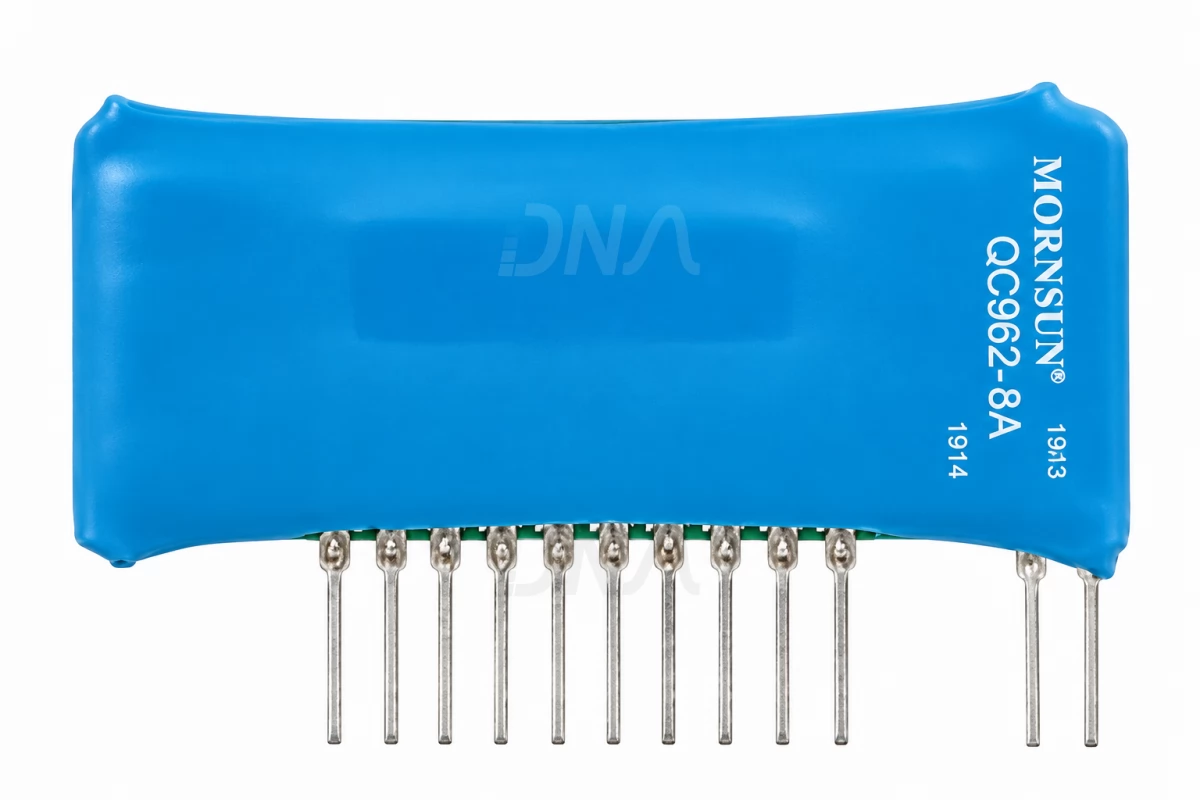

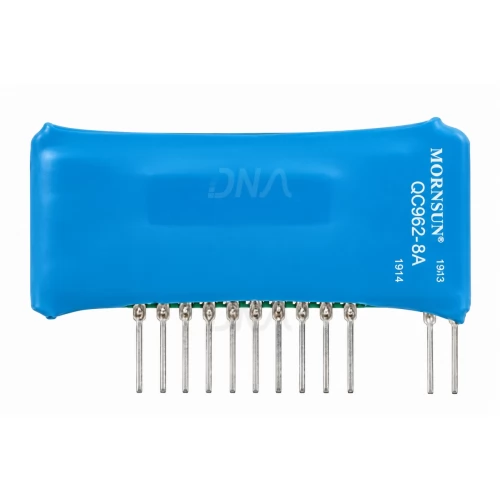

QC962-8A Mornsun Hybrid Integrated IGBT Driver Module

  • Stock: 10
  • Brand: Mornsun
  • SKU: 3655 | DAF620
  • Rs. 501.50 (inc GST)
    Rs.425.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

QC962-8A Mornsun Hybrid Integrated IGBT Driver Module

QC962-8A Mornsun Hybrid Integrated IGBT Driver Module

QC962 is a hybrid integrated IGBT driver designed for driving N-channel IGBT modules in any gate amplifier application. QC962-8A IGBT Driver provides the required electrical isolation between input and output with the opto-coupler. Short circuit protection is provided by a built in desaturation detector. A fault signal is provided if the short circuit protection is activate.

DNA solutions, Nashik has various types of Power Modules. Check out our complete collection of  Power Modules.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of QC962 8A IGBT Driver Module

  • TTL compatible input interface
  • Built in high CMRR opto-coupler (CMR: Typical: 30kV/μs, Min.:15kV/μs)
  • Two supply drive topology
  • Soft IGBT turn-off and protection circuit time reset
  • Controlled time detected short circuit
  • Built in short circuit protection circuit with in for fault output
  • Switching frequency up to 20kHz
  • Pin and characteristic are compatible with M57962AL
  • Electrical isolation voltage between input and output with opto-couplers (Viso=3750VRMS/min)

Applications of QC962 8A IGBT Driver Module

  • General-purpose Inverter
  • Uninterruptable Power Supplies(UPS)
  • AC Servo Systems
  • Welding Machines

    Related Links

    Package Includes

    1 x QC962-8A Mornsun Hybrid Integrated IGBT Driver Module

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
