TMC2208 Stepper Motor Driver Module

TMC2208 Stepper Motor Driver Module

TMC2208 V1.2 Driver Module, supports 1/256-step, max current 2A peak, designed for quiet operation.

The TMC2208 Stepper Motor Driver Module is engineered for precision control in 3D printing and robotics. This module features StealthChop technology for quieter operation and SpreadCycle technology for smoother movements. It supports up to 1/256 micro-stepping, ensuring high resolution even in limited pulse rate systems. With a voltage range of 3.3-5V and a maximum current of 2A peak, it fits seamlessly into existing 3D printer electronics without costly redesigns.

Incorporating a built-in security system, the TMC2208 Stepper Motor Driver Module protects against high temperatures, high currents, low voltage, and short circuits. The module is user-friendly, offering configuration via CFG pins or UART, making it suitable for various applications. With its compact design and integrated heatsink, it ensures efficient cooling and reliable performance.

Ideal for makers and engineers, the TMC2208 Stepper Motor Driver Module enhances the operation of 3D printers and similar devices. Explore its potential in your projects and experience advanced motion control technology that meets modern needs.

Explore the Motor Driver Modules from DNA. The TMC2208 is perfect for enhancing your projects. Check other Motor Driver Modules that we have in stock.

At DNA, we understand the needs of Indian electronics buyers. If you can't find certain parts, reach out to us. We can import and support retail and bulk orders. Check out our related items like MOSFETs, Development Boards, and Sensor Modules. Contact Us.

Features of TMC2208 Stepper Motor Driver Module

• Supports up to 1/256-step
• Voltage range: 3.3-5V
• Maximum current: 2A peak per phase
• Built-in security features
• Comes with heatsink for cooling
• StealthChop technology for quieter operation
• SpreadCycle technology for smoother movements

Specification of TMC2208 Stepper Motor Driver Module

• Continuous current: 1.2A per phase
• Peak current: 2A per phase
• Input voltage: 3.3-5V
• Micro-stepping resolution: 1/256
• Configuration: CFG pins or UART
• Dimensions: Compact design

Applications of TMC2208 Stepper Motor Driver Module

• 3D printing
• Robotics
• CNC machines
• Motion control systems
• Automation projects

Related Links for TMC2208 Stepper Motor Driver Module

• Other Products from Motor Driver Modules Category

Package Includes

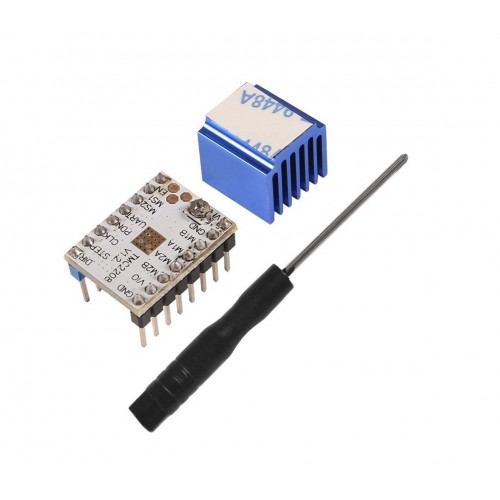

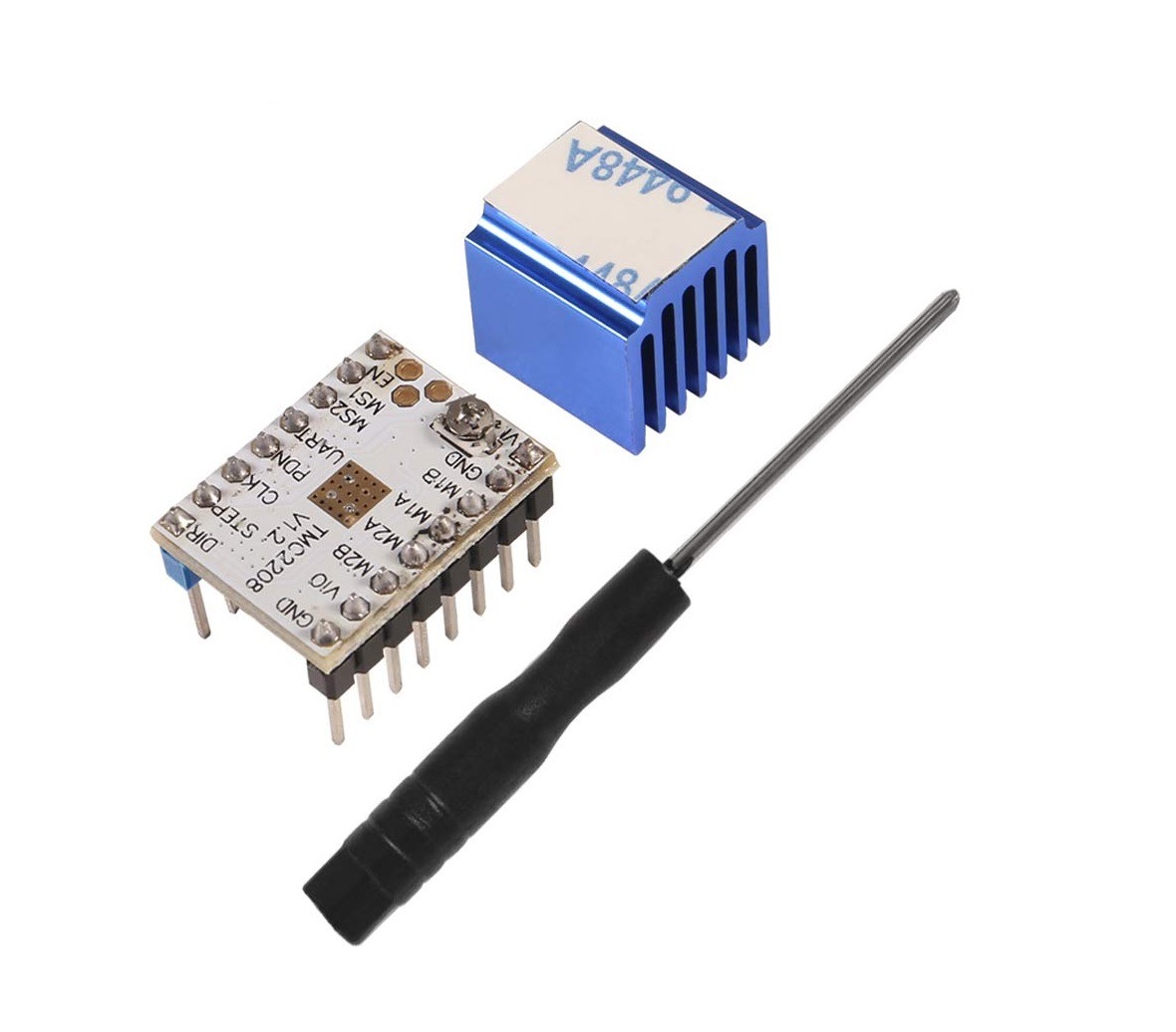

• 1 X TMC2208 Stepper Motor Driver Module
