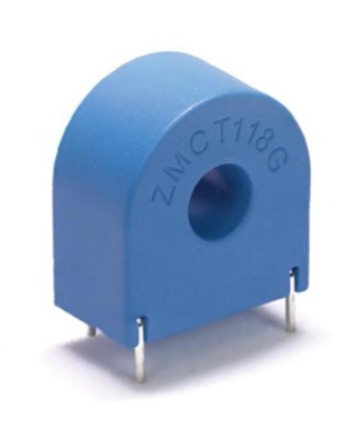

ZMCT118G 5 Ampere Current Transformer – PCB Mounting

ZMCT118G Current Transformer for PCB Mounting

ZMCT118G 5A Current Transformer – Accurate AC current sensing with galvanic isolation and compact design.

The ZMCT118G Current Transformer for PCB Mounting is engineered for precise measurement of AC currents up to 5 amperes. It features a high-quality ferrite core that ensures accuracy and provides galvanic isolation between the high-current primary circuit and the low-current output. Ideal for energy meters and smart power systems, this transformer outputs a low-level analog signal for easy integration into various electronic systems.

Its compact design allows for direct PCB mounting, making it suitable for space-constrained applications. The ZMCT118G Current Transformer operates effectively within a frequency range of 50Hz to 60Hz and maintains high accuracy, typically within ±0.5% to ±1%. This transformer minimizes power loss during measurement, thus enhancing overall system efficiency.

With an operating temperature range of -40°C to 85°C, the ZMCT118G Current Transformer for PCB Mounting adapts to diverse environments. This product is perfect for those looking to integrate reliable current sensing into their electrical systems, ensuring safety and performance.

Explore the reliability of Current and Voltage Sensors from leading manufacturers at DNA. Discover the best in the Current and Voltage Sensor category and find the right solution for your needs. Check other "Current and Voltage Sensor" that we have in stock.

At DNA, we cater to the needs of Indian electronics buyers. If you can't find specific parts, reach out to us. We can import items and support you in retail as well as in bulk. Don't miss out on related components like Digital IC, Capacitor, Programmer, MOSFET, Hongfa Relay, and DC to DC Converter IC. Contact Us.

Features of ZMCT118G Current Transformer for PCB Mounting

• High Precision
• Galvanic Isolation
• Compact Size
• Easy Integration
• Low Power Loss

Specification of ZMCT118G Current Transformer for PCB Mounting

• Primary Current Range: 0 to 5A AC
• Turns Ratio: Typically 1:1000
• Output Signal: 0 to 5V
• Accuracy: ±0.5% to ±1%
• Frequency Range: 50Hz – 60Hz
• Operating Voltage: Low voltage
• Dielectric Strength: Up to 1000V AC
• Operating Temperature Range: -40°C to 85°C

Applications of ZMCT118G Current Transformer for PCB Mounting

• Energy meters
• Smart power systems
• Protection devices
• Electrical monitoring
• Current sensing applications

Related Links for ZMCT118G Current Transformer for PCB Mounting

• Other Products from Current and Voltage Sensor Category

Package Includes

• 1 X ZMCT118G Current Transformer for PCB Mounting
