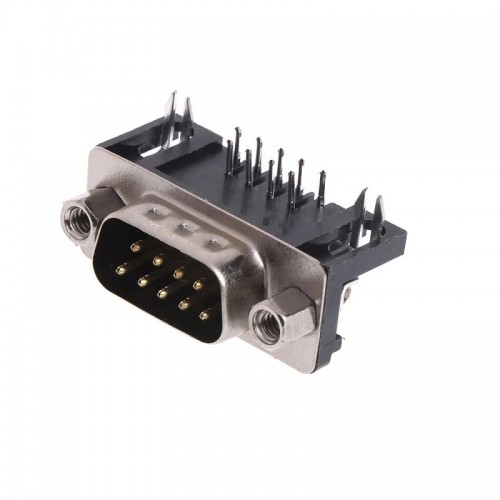

DB9 male PCB Mount with Internal thredding

DB9 male PCB Mount with Internal thredding

DB9 Male Right Angle Connector is the most common type of electrical connector. DB9 connector is part of the D-sub miniature (D-sub) connector plug and socket family for computer and communication devices.DB-9 pins are arranged in rows of two, as one five-pin row above a four-pin row. The terminals of this connector are bent at a right angle. DB9 connectors are designed to work with the EIA/TIA 232 serial interface standard, which determined the function of all nine pins as a standard so that multiple companies could design them into their products. DB9 connectors were commonly used for serial peripheral devices like keyboards, mice, joysticks, etc. Also, they are used in DB9 cable assemblies for data connectivity. This product is known as 9 Pin DB9 Male Connector, Component, DB9 Connector, DB9 Male Connector, DB9 9 Pin Male Connector.

DNA solutions, Nashik has various types of Connector's. Check out our complete collection of Connector's.

• Mounting Type: DB9 Male PCB Mount Right Angle

• Connector Type: DB-9

• Connector Gender: Male

• Operating Temperature Range: -55 to 125°C

• Voltage Rating: 250 VAC

• Current Rating: 5 A

• Insulation Resistance: 1000 MΩ

• Contact Resistance: 20 mΩ

• Material: Metal and plastic

• Length: 30 mm

• Width: 16 mm

• Height: 18 mm

• Weight: 6 gm

Applications DB9 male PCB Mount with Internal thredding

• Network ports

• Computer video output

• Communication Device

• Linear and rotary encoders in industries

• Game controller ports

Package Includes

1 x DB9 male PCB Mount with Internal thredding
