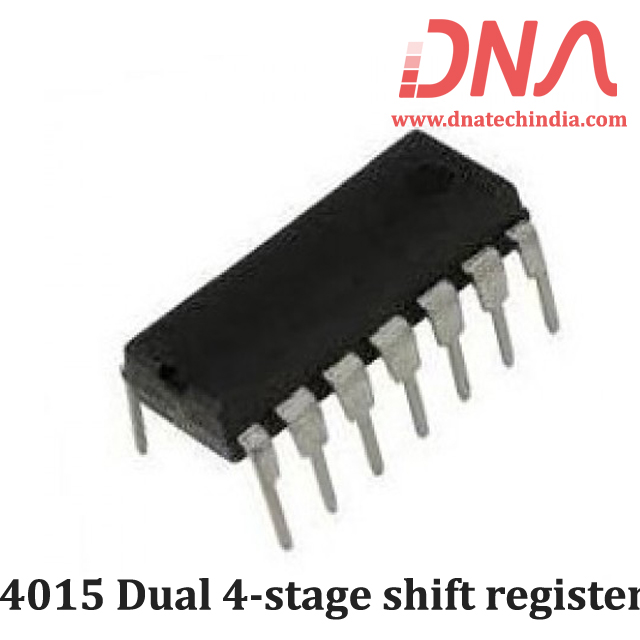

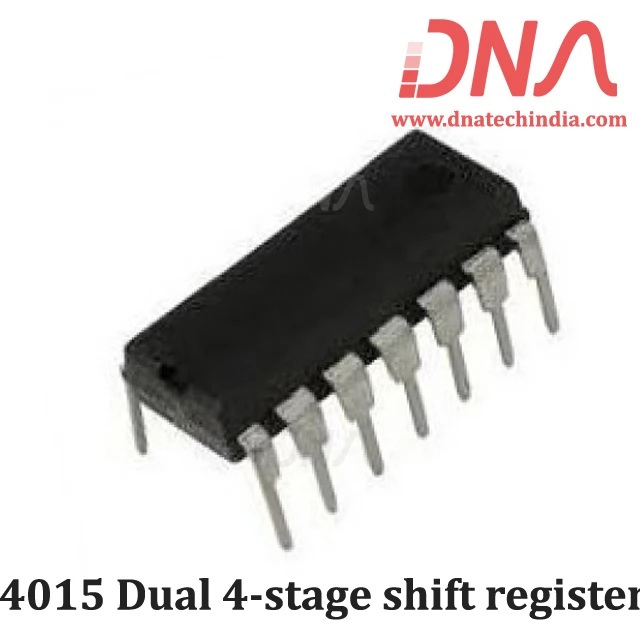

4015 Dual 4-stage shift register

4015B Dual 4-Stage Shift Register

HEF4015B Dual 4-bit static shift register with 3V to 15V supply range and asynchronous reset.

The 4015B Dual 4-Stage Shift Register is a reliable serial-to-parallel converter. It features dual edge-triggered 4-bit static shift registers with a clock input and four buffered parallel outputs. This component operates within a power supply range of 3V to 15V, ensuring compatibility with various electronic circuits. The asynchronous master reset function allows for easy clearing of the register, making it efficient for data handling in digital applications.

Designed with a Schmitt trigger clock input, the HEF4015B tolerates slower clock transitions, enhancing its usability in practical scenarios. It is ideal for applications such as data storage, signal processing, and other electronic projects requiring reliable data shifting. Explore the full potential of the 4015B Dual 4-Stage Shift Register for your electronic projects today.

For those in Nashik, visit our local shop at New CBS to purchase this component directly or order online for delivery anywhere in India. Check out other 4000 Series IC's for a comprehensive range of electronic components.

At DNA, we offer the trusted 4015B Dual 4-Stage Shift Register from the 4000 Series IC's category. Discover more options in this category that suit your project needs. Check other 4000 Series IC's that we have in stock.

If you are looking for specific electronic parts, DNA is here to help. We can import components if they are not available in stock. We support retail and bulk orders. Explore related items like Sensor Modules, Power Supplies, Capacitors, IGBTs, Connectors, and MOSFETs. Contact Us.

Features of 4015B Dual 4-Stage Shift Register

• Dual edge-triggered registers
• Asynchronous master reset
• Operates from 3V to 15V
• Buffered parallel outputs
• Schmitt trigger clock input

Specification of 4015B Dual 4-Stage Shift Register

• Power supply range: 3V to 15V
• Number of bits: 4
• Parallel outputs: 4
• Input type: Serial
• Reset type: Asynchronous

Applications of 4015B Dual 4-Stage Shift Register

• Data storage
• Signal processing
• Electronic projects
• Digital circuits
• Communication systems

Related Links for 4015B Dual 4-Stage Shift Register

• Other Products from 4000 Series IC's Category

Package Includes

• 1 X 4015B Dual 4-Stage Shift Register
