5 Volt DPDT Telecom Relay

5 volt PCB Mounting DPDT RELAY

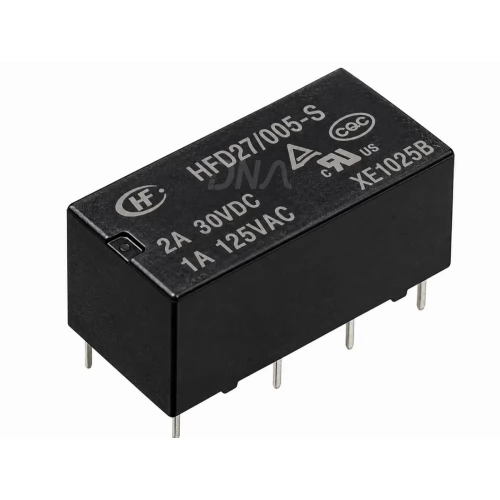

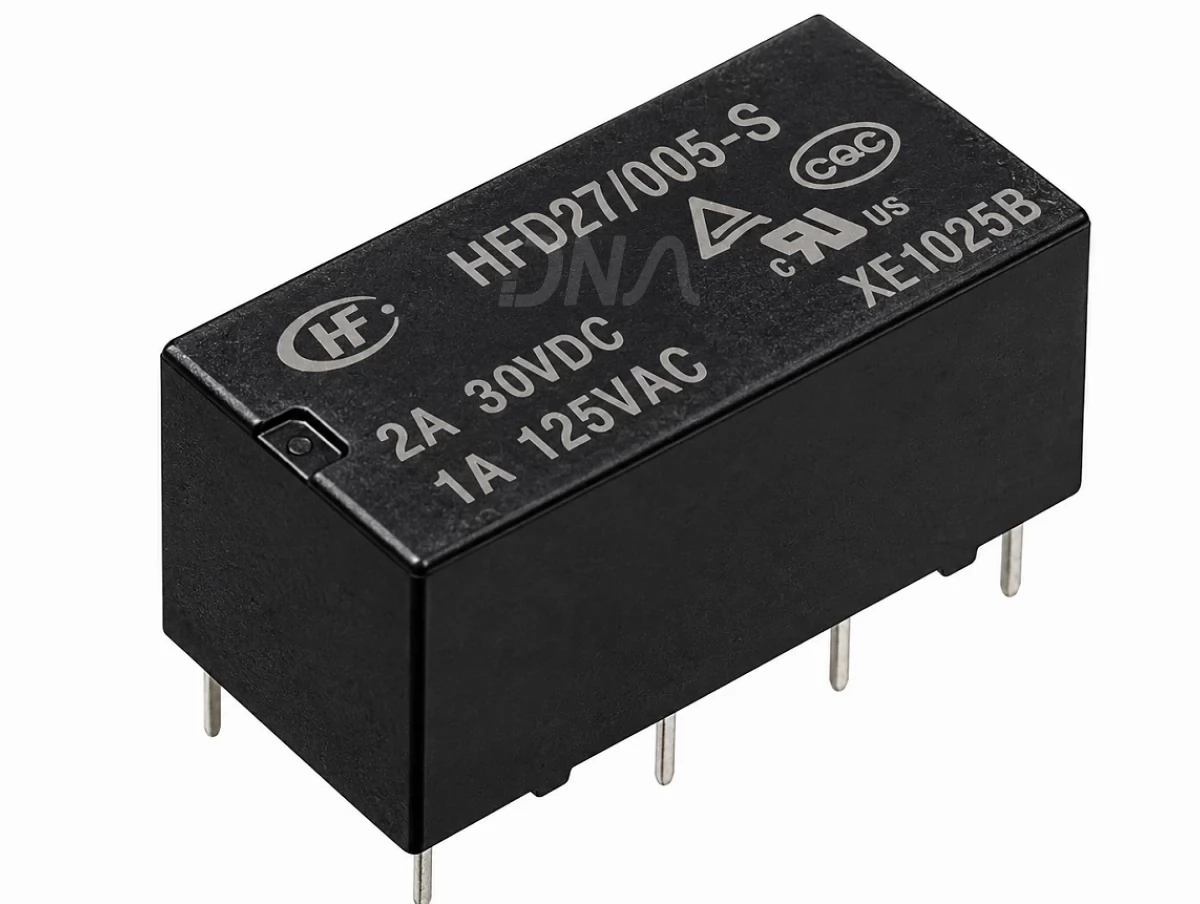

Hongfa HFD 27-005S 5 Volt Telecom Relay ( DIP relay)

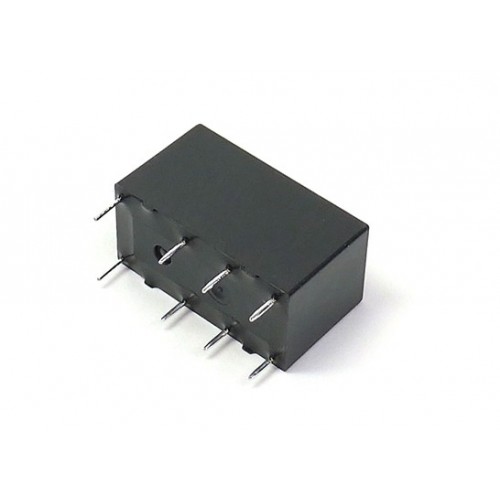

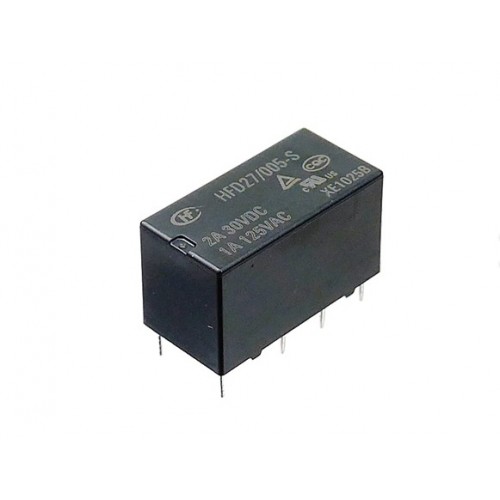

This is a sub-miniature 5 volt Double Pole Double Throw (DPDT) PCB mounting relay also known as Telecom relay. This is a compact relay that fits into a 16 PIN IC base.

Specifications Of HFD 27005-S subminiature DIP Relay

• Part Number: HFD27005S
• Type Of Relay: Electromagnetic

• Contacts configuration: DPDT (Double pole double throw)

• Rated coil voltage: 5 Volt DC

• AC contacts rating @R  (at resistance load): 1 Ampere / 125VAC

• DC contacts rating @R  (at resistance load): 2 Ampere / 30 Volt DC

• Contact current max.: 2 Ampere

• Switched voltage: max 240 Volt AC, max 120 Volt DC

• Relay variant: subminiature

• Mounting: PCB (16 PIN IC base)

• Coil resistance: 125Ω

• Coil voltage min.: 3.75 Volt DC

• Coil voltage max.: 10 Volt DC

• Operate time: 7ms

• Body dimensions: 20.2 x 10 x 11.5 mm

• Release time: 4ms

• Coil power consumption: 200 mW

• Operating temperature: -40...85°C

• Contact resistance: 100mΩ

• Contact material: AgNi + Au

• Terminal pitch: 5.08mm


Features of HFD 27005-S Telecom Relay

• 2 Form C configuration
• High Switching capacity 125VA/60W
• Matching 16 PIN IC socket
• Bifurcated Contacts
• Epoxy Sealed for automatic wave soldering and cleaning
• Environmental friendly product (ROHS compliant)

Related Links

• HFD 27005 Datasheet
