TCRT5000L Optical Sensor


Write a review | 0 reviews

  • Stock: 2

    Availability: InStock priceValidUntil: 2026-03-13

  • Brand: Generic
  • SKU: 262 | DAA621

Availability: InStock priceValidUntil: 2026-03-13

  • Rs. 53.10 (inc GST)
    Rs.45.00 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

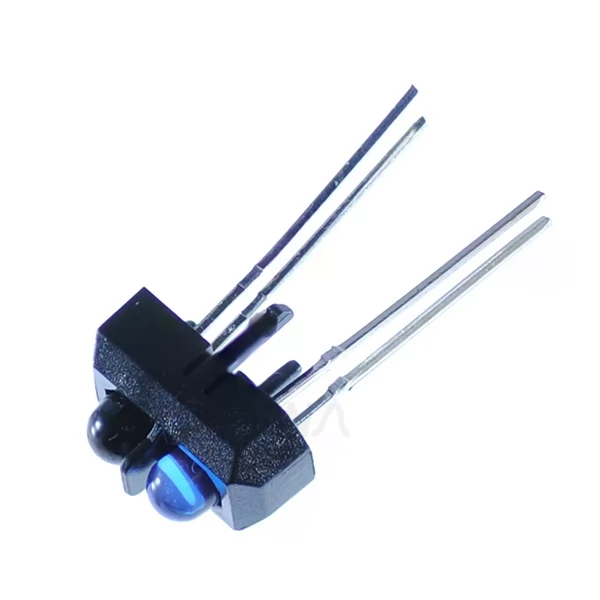

TCRT5000L

Reflective Optical Sensor with Transistor Output

The TCRT5000 and TCRT500L are reflective sensors which include an infrared emitter and phototransistor in a leaded package which blocks visible light. The package includes two mounting clips. TCRT5000L is the long lead version.

FEATURES

  • Package type: leaded
  • Detector type: phototransistor
  • Dimensions (L x W x H in mm): 10.2 x 5.8 x 7
  • Peak operating distance: 2.5 mm
  • Operating range within > 20 % relative collector
  • current: 0.2 mm to 15 mm
  • Typical output current under test: IC = 1 mA
  • Daylight blocking filter
  • Emitter wavelength: 950 nm
  • Lead (Pb)-free soldering released
  • Compliant to RoHS directive 2002/95/EC and in accordance to WEEE 2002/96/EC


APPLICATIONS

  • Position sensor for shaft encoder
  • Detection of reflective material such as paper, IBM cards,magnetic tapes etc.
  • Limit switch for mechanical motions in VCR
  • Line Sensor for Line following robot
  • Heart Beat sensing

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
