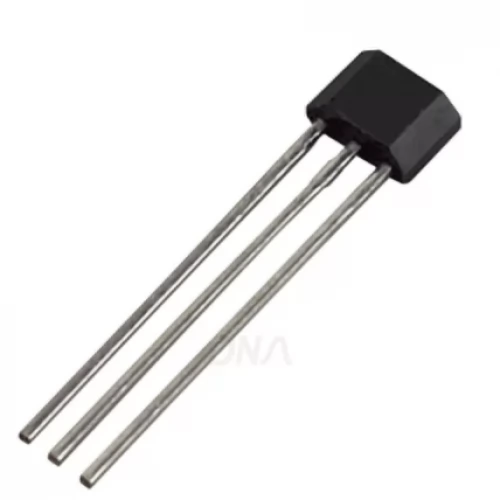

Product Images are shown for illustrative purposes only and may differ from actual product.

WSH49E Hall Effect Sensor

Write a review | 1 reviews

Stock: 20
Availability: InStock priceValidUntil: 2026-12-01
SKU: 464 | DAA578

Rs. 29.50 (inc GST)
Rs.25.00 + GST
Qty : Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

WSH49E Hall Effect Sensor

WSH49E Linear Hall Effect Sensor for precise magnetic flux detection, operates at 3.0-6.5V, and measures up to ±900 Gauss.

The WSH49E Hall Effect Sensor is designed for accurate detection of magnetic fields. It integrates a Hall sensing element, linear amplifier, and a sensitivity controller. This Hall Effect Sensor operates effectively in a range of 3.0 to 6.5V and can detect small changes in magnetic flux density, making it suitable for applications like current sensing and proximity detection. Its compact TO-92S package ensures easy integration into various electronic designs.

With a flat response to 23kHz and low noise output, the WSH49E Hall Effect Sensor provides reliable performance in electrically noisy environments. It can handle temperatures from -20℃ to 100℃, ensuring versatility in diverse applications. This sensor’s wide sensible magnetic field range allows it to function efficiently across different supplied voltages, enhancing its usability in multiple projects.

Ideal for engineers and hobbyists, the WSH49E Hall Effect Sensor serves as a sensitive monitor of magnetic flux, offering isolation from contamination. Whether used in motion detection or as a tooth sensor, it is a valuable component for enhancing system performance.

Explore the precision of the WSH49E Hall Effect Sensor from DNA. Ideal for various applications, this sensor enhances performance in detecting magnetic fields. Check other "Magnetic and Hall Effect Sensor" that we have in stock.

At DNA, we cater to all your electronic needs. If you can't find specific parts, reach out to us. We can import components and support both retail and bulk orders. Check out our range of related items like Super Capacitors, SMPS, DC to DC Converter Modules, Power Supplies, Inductors, and Crystals. Contact Us.

Features of WSH49E Hall Effect Sensor

Wide operating voltage range
Low noise output
High sensitivity to magnetic fields
Compact TO-92S package
Flat response to 23kHz

Specification of WSH49E Hall Effect Sensor

Operating voltage: 3.0~6.5V
Temperature range: -20℃~100℃
Magnetic field sensitivity: ±900 Gauss at 5V

Applications of WSH49E Hall Effect Sensor

Current sensing
Proximity detection
Motion detection
Tooth sensing
Magnetic field monitoring

Package Includes

1 X WSH49E Hall Effect Sensor

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
