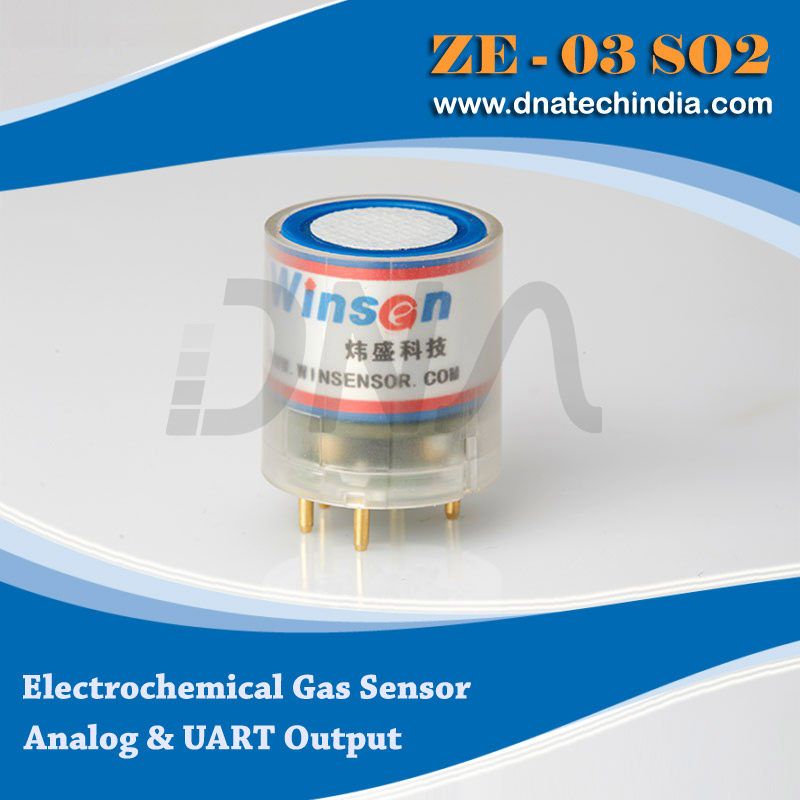

Winsen ZE03-SO2 GAS Sensor Module

Winsen ZE03-SO2 GAS Sensor Module

Electrochemical Detection Module ZE03-SO2

ZE03-SO2 Gas sensor can be used to measure Sulfur dioxide concentration in atmosphere. This is an Industrial grade sensor and is are very easy to interface to your Micro-controller, Arduino as well as Raspberry Pi as they have linear Analog output as well as UART output (3 volts).

ZE03 Series of Gas Sensor Modules by Winsen is a general-purpose and high-performance electrochemical module. It uses three electrodes, electro-chemical gas sensor and high-performance micro-processor. By using this GAS Sensor you will be able to Monitor concentration of Sulphur Dioxide Gas.

It is with built-in temperature sensor to make temperature compensation, which makes more accurate to detect Sulfur dioxide gas concentration. It has the digital output as well as analog voltage output at the same time which facilities the usage and calibration and shortens the development period. It is a combination of mature electrochemical detection principle and sophisticated circuit design, to meet customers different detection needs.

Features Of Electrochemical Detection Module ZE03-SO2

• High sensitivity & resolution

• Low power consumption

• UART and analog voltage output

• Good stability and excellent anti-interference ability

Application Of ZE03-SO2 GAS Detection Module

• Portable and fixed gas detector, various gas detection equipment and situation.

Technical Parameters of ZE03-SO2 Sulphur Dioxide GAS Sensor Module

• Model No : ZE03

• Target Gas : Sulphur Di-oxide (SO2)

• Working Voltage : DC 4 Volts to 9 Volts

• Working Current :  < 5 mA

• Size : ø23.5mm*24.5mm

• Working Life :  2 year

• Output Data : UART Output (TTL electrical level,3 Volts) and Analog Voltage

• Storage Environment Temp. : 20~25°C

• Storage Environment Humidity. : 30%RH-70%RH

• Operating Environment Temp. : -20~50°C

• Operating Environment Humidity. : 15%RH-90%RH (no condensation)

Detection range and signal output

• Detection range : 0 - 20 ppm

• Voltage output : 0.6-3 Volts

• Response Time : ≤30

• Decimal point of serial port : 1 byte

Pin definition of Sulphur Dioxide Gas Module ZE03-SO2

• GND : Ground

• VCC : Power supply (4 volt to 9 volts)

• VO : Analog output Voltage

• RXD : Serial Port Input (3 volts)

• TXD : Serial port output (3 volts)

Related Link

• ZE-03 Series Winsen GAS Sensor Arduino Library

• Forum for ZE03 Arduino Library

• IoT Based City AIR Quality Surveillance

• ZE03-SO2 Sulfur dioxide Gas Sensor Datasheet

Package Includes

• 1 x Winsen ZE03-SO2 GAS Sensor Module
