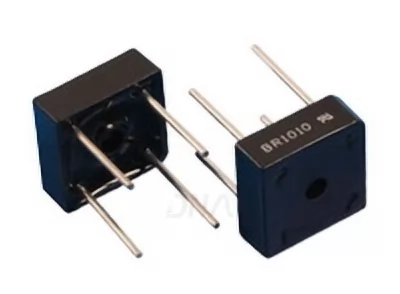

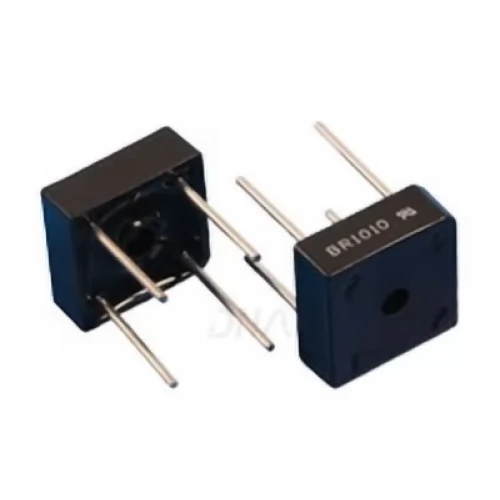

• BR1010 Bridge Rectifier

Product Images are shown for illustrative purposes only and may differ from actual product.

BR1010 Bridge Rectifier

  • Stock: 6
  • SKU: 0560 | DAA361
  • Rs. 38.94 (inc GST)
    Rs.33.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

BR1010 Bridge Rectifier

BR1010 is Single Phase Full Wave Bridge Rectifier.

The Voltage range of BR1010 is from 50V to 1000V up to 10Amp current.

Features BR1010 Bridge Rectifier

  • Peak Reverse Voltage (Vrrm) : 1000V

  • Max. RMS Bridge Voltage (Vrms) : 700V

  • Max. DC Blocking Voltage (Vdc) : 1000V

  • Av. Forward Rectified Current (Io) : 10.0A

  • Maximum Reverse Current (Ir) : 5µA

  • Forward Volt Drop per Element (Vf) : 1.1V

  • Surge overload rating : 200 amperes peak

  • Low forward voltage drop

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Ratings at 25 oC ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%.

Mechanical Data

  • Lead : Mil-STD-202E method 208C guaranteed

  • Mounting position : Any

  • Weight : 7.86 grams

  • Epoxy : Device has UL flammability classification 94V-O

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
