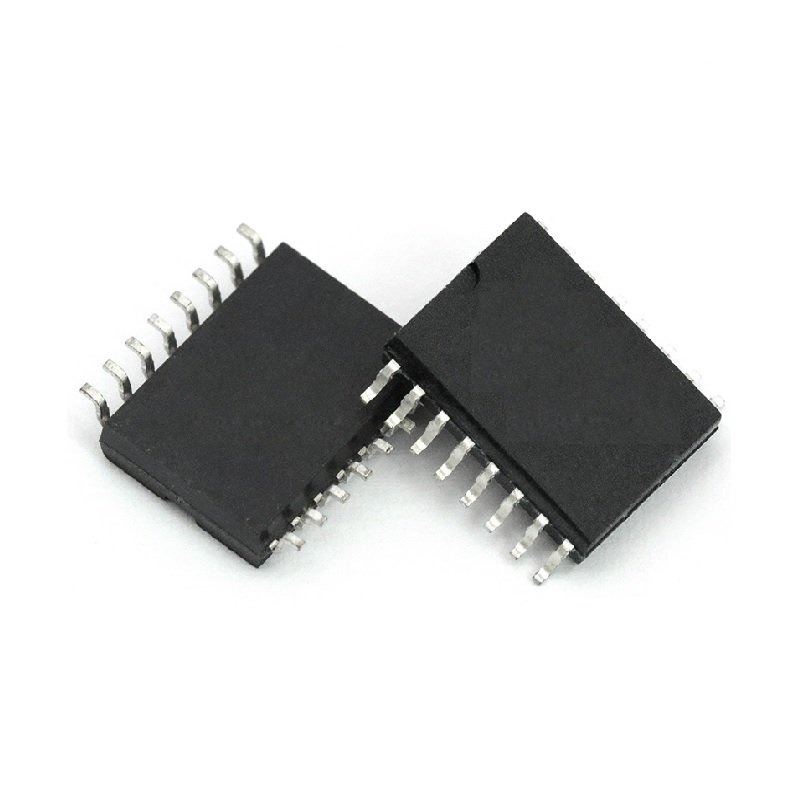

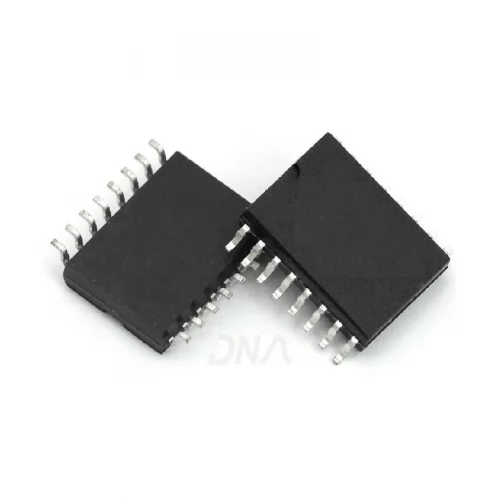

DS3231 - I2C Real Time Clock (RTC) IC – SOP-16 Package

DS3231 - I2C Real Time Clock (RTC) IC – SOP-16 Package

The  DS3231  is  a  low-cost,  extremely  accurate  I2C  real-time clock (RTC) with an integrated temperature-compensated  crystal  oscillator  (TCXO)  and  crystal.  The device  incorporates  a  battery  input,  and  maintains  accurate timekeeping when main power to the device is interrupted. The integration of the crystal resonator enhances the  long-term  accuracy  of  the  device  as  well  as  reduces the piece-part count in a manufacturing line. The DS3231 is  available  in  commercial  and  industrial  temperature ranges, and is offered in a 16-pin, 300-mil SO package.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of  IC's.

• Accuracy ±2ppm from 0°C to +40°C


• Accuracy ±3.5ppm from -40°C to +85°C


• Battery Backup Input for Continuous Time keeping


• Operating Temperature Ranges Commercial: 0°C to +70°CIndustrial: -40°C to +85°C


• Low-Power Consumption


• Real-Time Clock Counts Seconds, Minutes, Hours, Day, Date, Month, and Year with Leap Year Compensation Valid Up to 2100


• Two Time-of-Day Alarms


Specifications of DS3231 SMD IC

• Part No: DS3231


• RTC Bus Interface: Serial, I2C


• Date Format: DW:DM:M:Y


• Time Format: HH:MM:SS


• Battery Backup Switching: Backup Switching


• Supply Voltage – Max: 5.5 V


• Supply Voltage – Min: 2.3 V


• Minimum Operating Temperature: -40°C


Package Includes

• 1 x DS3231 - I2C Real Time Clock (RTC) IC – SOP-16 Package
