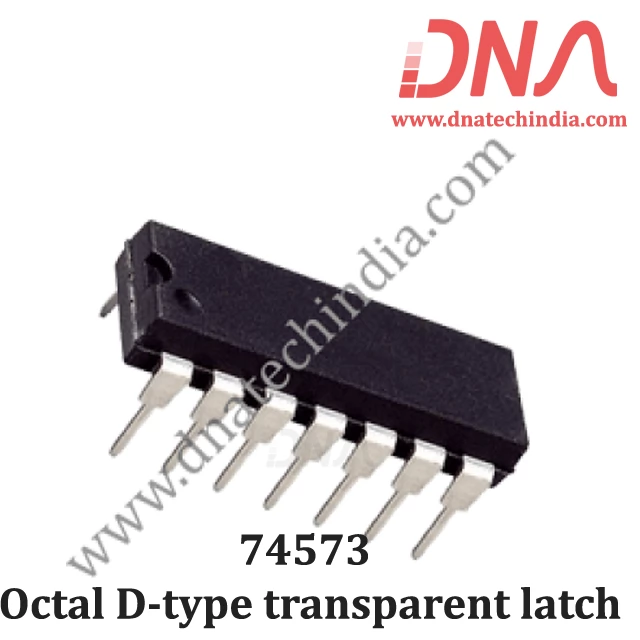

74573 Octal D-type transparent latch

74HCT573 Octal D-Type Transparent Latch

74HCT573 Octal D-type transparent latch with 3-state outputs, latch enable and output enable inputs.

The 74HCT573 Octal D-Type Transparent Latch is an 8-bit latch with transparent data entry and 3-state outputs. When latch enable (LE) is HIGH, data flows through, making it suitable for real-time data processing in digital circuits. This device is ideal for interfacing with microprocessors and microcomputers, providing flexibility in design. The 74HCT573 also features a high-impedance output state for bus-oriented applications, enhancing the efficiency of data handling.

This latch is compliant with JEDEC standard no. 7 A and supports multiple package options, ensuring compatibility with various electronic setups. With inputs and outputs positioned on opposite sides, it simplifies connections and improves layout design. The 74HCT573 fits perfectly in applications requiring reliable data storage and transfer, making it a versatile choice for engineers.

Explore how the 74HCT573 Octal D-Type Transparent Latch can enhance your projects. Its features, such as common output enable input and current limiting resistors for voltage interfacing, make it a dependable component for your electronic needs. Discover our range of 7400 Series IC's to find the right fit for your applications.

At DNA, we offer a wide selection of the 7400 Series IC's including the reliable 74HCT573 Octal D-Type Transparent Latch. Discover the best options for your electronic projects. Check other 7400 Series IC's that we have in stock.

If you are searching for specific electronic components, DNA is here to help. We can import parts not listed and support both retail and bulk orders. Explore related items like Hongfa Relay, Sensors, Inductors, Programmers, Resistors, and Development Modules. Contact Us.

Features of 74HCT573 Octal D-Type Transparent Latch

• 8-bit D-type latch
• 3-state non-inverting outputs
• Common output enable input
• Multiple package options
• Complies with JEDEC standard no. 7 A

Specification of 74HCT573 Octal D-Type Transparent Latch

• Latch enable (LE) input
• Output enable (OE) input
• High-impedance output state
• Clamp diodes for current limiting
• Operating voltage range compatible with microprocessors

Applications of 74HCT573 Octal D-Type Transparent Latch

• Microprocessor interfacing
• Data storage in digital circuits
• Bus-oriented applications
• Real-time data processing
• Electronic circuit design

Related Links for 74HCT573 Octal D-Type Transparent Latch

• Other Products from 7400 Series IC's Category

Package Includes

• 1 X 74HCT573 Octal D-Type Transparent Latch
