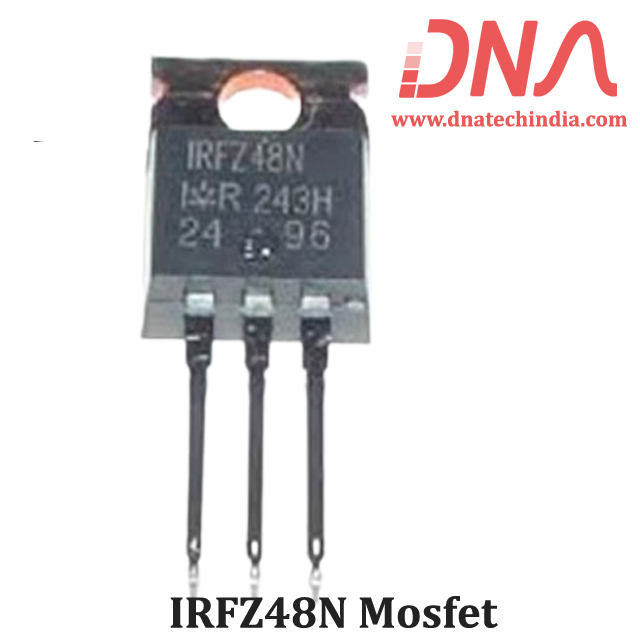

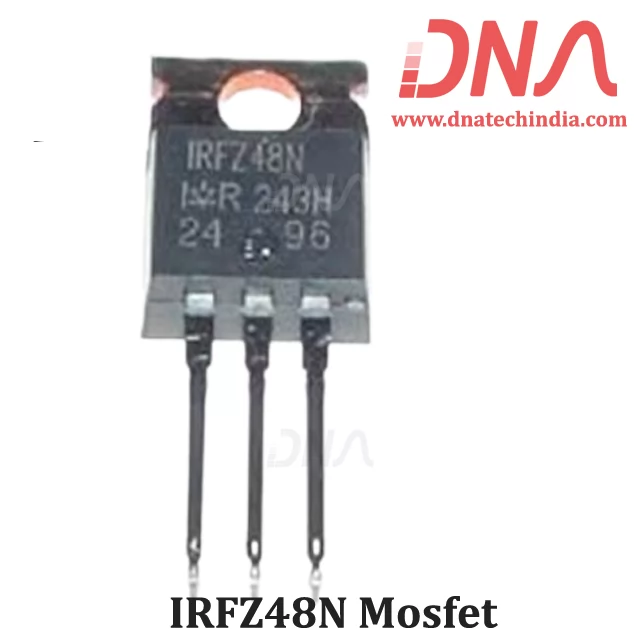

• IRFZ48N Power MOSFET

Product Images are shown for illustrative purposes only and may differ from actual product.

IRFZ48N Power MOSFET

  • Stock: 26
  • SKU: 1160 | DAA154
  • Rs. 46.02 (inc GST)
    Rs.39.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

IRFZ48N Power MOSFET

Third generation Power MOSFETs from Vishay provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness.

The IRFZ48N is TO-220AB package which universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 W. The low thermal resistance and low package cost of the TO-220AB contribute to its wide acceptance throughout the industry.

DNA Solutions has large collection of various types of MOSFET and IGBT's. Check our complete collection of MOSFET and IGBT.


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of IRFZ48N MOSFET

  • Dynamic dV/dt Rating
  • Repetitive Avalanche Rated
  • Ultra Low On-Resistance
  • Very Low Thermal Resistance
  • 175 °C Operating Temperature
  • Fast Switching
  • Ease of Paralleling
  • Compliant to RoHS Directive 2002/95/EC
  • Drain-Source Voltage VDS : 60V
  • Gate-Source Voltage VGS : ± 20V
  • Linear Derating Factor : 1.3 W/°C
  • Single Pulse Avalanche Energy EAS : 100mJ
  • Avalanche Current IAR : 50A
  • Repetitive Avalanche Energy EAR : 19mJ

Related Link

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
