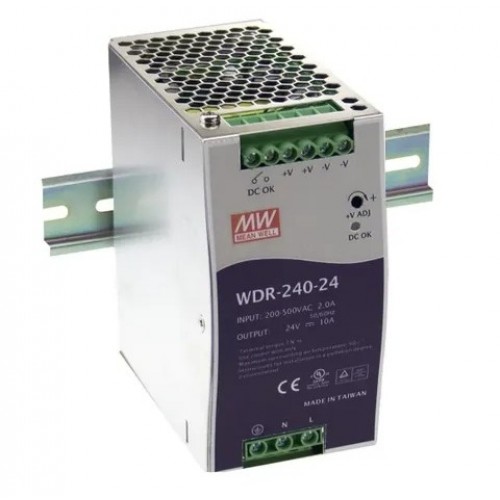

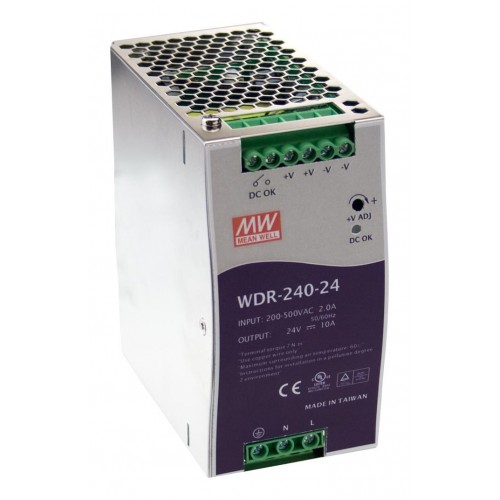

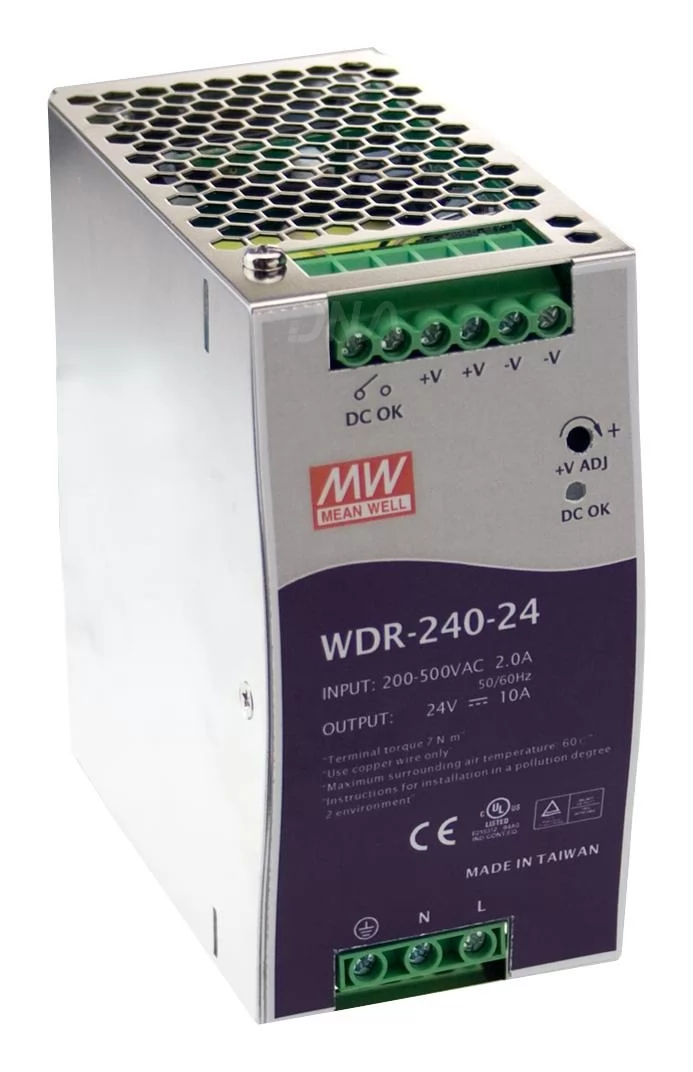

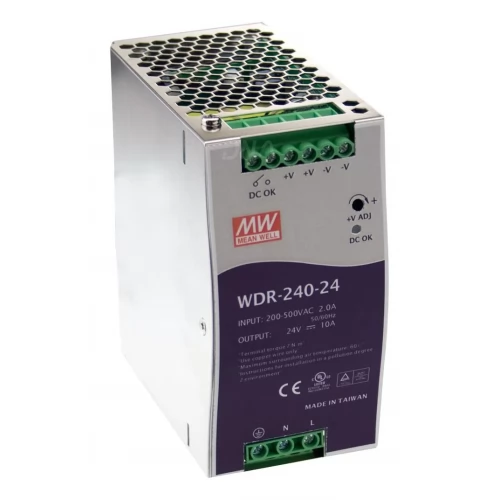

Mean Well WDR-240-24 DIN-rail AC-DC power supply with 24 V, 10 A output, 240 W power and a wide 180–550 VAC input range.

The Mean Well WDR-240-24 is a DIN-rail AC-DC power supply that converts AC or DC input into a regulated 24 V DC output. It delivers 10 A at 240 W for industrial control panels that need a steady DC supply.

Its wide input range supports single- or two-phase AC operation. Built-in active PFC helps meet EN 61000-3-2. Protection against short circuit, overload, overvoltage and overtemperature helps guard the supply during faults. Free-air convection cools the unit, and a DC OK relay contact provides a status signal.

Designed for industrial control equipment, the supply mounts on TS35/7.5 or TS35/15 DIN rail. It combines power conversion, fault protection and relay status in one unit for control panel installations.

Find Mean Well power supplies at DNA, with product details to help you choose a suitable unit for your setup. Browse our Meanwell SMPS range for your next project. Check other Meanwell SMPS that we have in stock

For Indian electronics buyers, DNA offers import support and retail or bulk support. Contact us if you cannot find a part, or need related items such as capacitors, SMPS, diodes, digital ICs, development boards, or humidity and temperature sensors. Contact Us

Features of Mean Well WDR-240-24 240 W Single-Output DIN-Rail AC-DC Power Supply

• Active PFC supports input-current compliance
• Built-in protection covers short circuit, overload, overvoltage and overtemperature
• Free-air convection cooling avoids fan-based cooling
• DC OK relay contact provides a status signal
• Mounts on TS35/7.5 or TS35/15 DIN rail
• Tested at full load before delivery

Specifications of Mean Well WDR-240-24 240 W Single-Output DIN-Rail AC-DC Power Supply

• Rated output voltage: 24 V DC
• Rated output current: 10 A
• Rated output power: 240 W
• Input voltage range: 180–550 VAC or 254–780 VDC
• Output voltage adjustment range: 24–28 V
• Efficiency: 91% typical
• Operating temperature: −30 to +70°C, refer to the derating curve
• Dimensions (W × H × D): 63 × 125.2 × 113.5 mm

Applications of Mean Well WDR-240-24 240 W Single-Output DIN-Rail AC-DC Power Supply

• Industrial control equipment

Related Links for Mean Well WDR-240-24 240 W Single-Output DIN-Rail AC-DC Power Supply

• Mean Well WDR-240-24 240 W Single-Output DIN-Rail AC-DC Power Supply Datasheet

• Other Products from Meanwell SMPS Category

Package Includes

• 1 X Mean Well WDR-240-24 240 W Single-Output DIN-Rail AC-DC Power Supply
