Product Images are shown for illustrative purposes only and may differ from actual product.

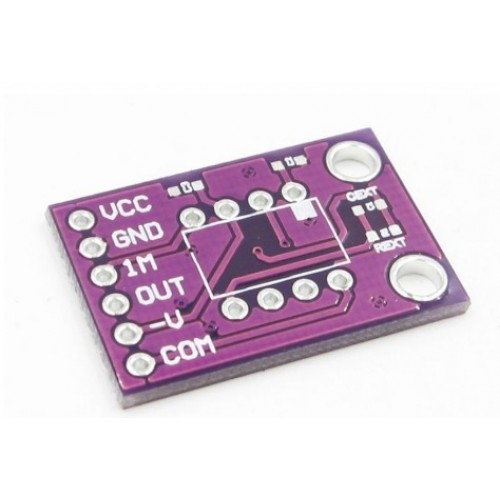

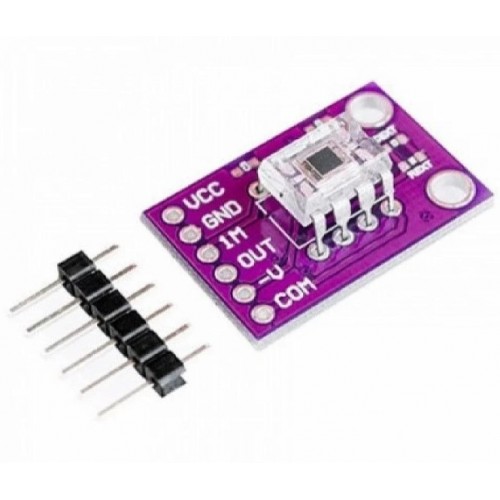

OPT101 Light Intensity Sensor Module - FR-01-133

Write a review | 2 reviews

Stock: 5
Availability: InStock priceValidUntil: 2026-11-05
Brand: Generic
SKU: 8152 | DAH676

Rs. 1,150.50 (inc GST)
Rs.975.00 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

FR-01-133 (CJMCU-101) Light Intensity Sensor Module

FR-01-133 (CJMCU-101) light intensity sensor module with integrated photodiode and amplifier, 2.7 V to 36 V supply, and 14 kHz bandwidth.

The FR-01-133 (CJMCU-101) Light Intensity Sensor Module combines a photodiode with a transimpedance amplifier. It turns received light into an output voltage, so a circuit can read changes in light level. The module supports a 2.7 V to 36 V supply and provides a linear light intensity output.

The integrated design combines sensing and signal conversion in one module. Single- or dual-supply operation supports different circuit designs, while low dark current and high linearity support light measurement. Its 14 kHz bandwidth allows it to respond to changing light signals.

Use this light intensity sensor module in medical and laboratory instruments, barcode scanners, photographic analyzers, position and proximity sensing, or smoke detectors. Its voltage output offers a direct way to connect light sensing to an electronic measurement or control circuit.

DNA supplies the FR-01-133 (CJMCU-101) Light Intensity Sensor Module for electronics projects and equipment. Browse our Light, Color and Imaging Sensor range and contact DNA for product support. Check other Light, Color and Imaging Sensor that we have in stock

If you cannot find a part, contact DNA for import support and retail or bulk orders. We can also help you find related Sensor, DC to DC Converter Module, Humidity & Temperature Sensor, Super Capacitor, IGBT, or Power Supply products. Contact Us

Features of FR-01-133 (CJMCU-101) Light Intensity Sensor Module

Combines a photodiode and transimpedance amplifier
Converts light intensity into an output voltage
Supports single- or dual-supply operation
High linearity
Low dark current

Specifications of FR-01-133 (CJMCU-101) Light Intensity Sensor Module

Supply voltage: 2.7 V to 36 V
Quiescent current: 120 µA
Operating temperature: 0 °C to 70 °C
Photodiode active area: 2.29 mm × 2.29 mm
Responsivity: 0.45 A/W at 650 nm
Bandwidth: 14 kHz
Output voltage range: Up to V_supply − 1.15 V

Applications of FR-01-133 (CJMCU-101) Light Intensity Sensor Module

Medical instrumentation
Laboratory instrumentation
Barcode scanners
Smoke detectors

Package Includes

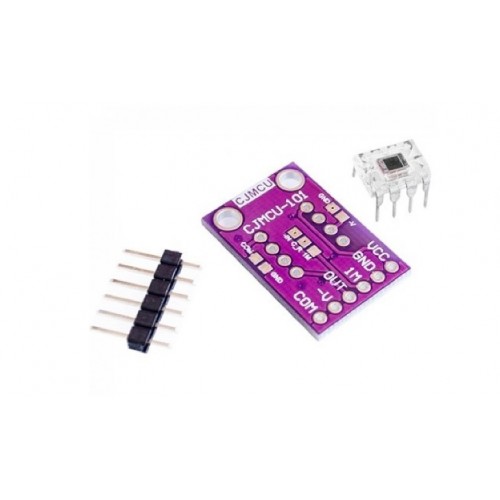

1 X FR-01-133 (CJMCU-101) Light Intensity Sensor Module

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
