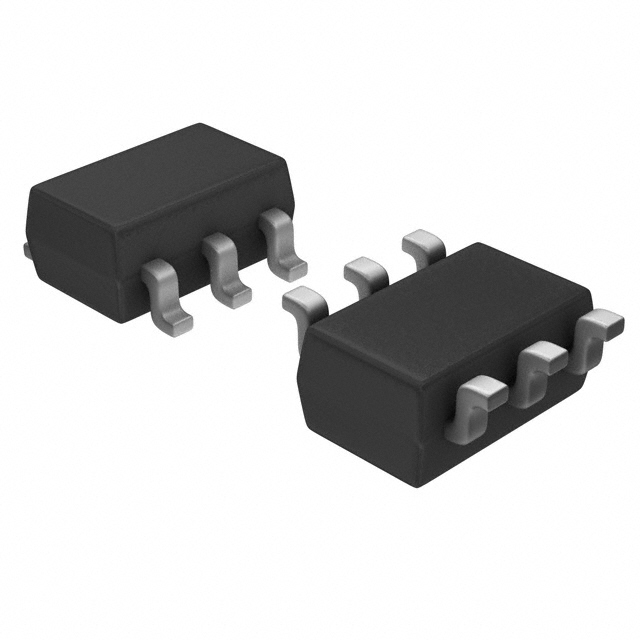

USBLC6-2SC6 - ESD Protection-6pin-SOT23 Package

USBLC6-2SC6 ESD Protection Array

USBLC6-2SC6 ESD Protection Array with ultra low capacitance of 0.4pF, low clamping voltage, and compliance with IEC 61000-4-2 standards.

The USBLC6-2SC6 ESD Protection Array is designed to safeguard sensitive components in high-speed data lines. This 6-pin SOT23 package offers an ultra low capacitance of 0.4pF, making it perfect for applications like USB 2.0 ports and Gigabit Ethernet. It features compliance with IEC 61000-4-2 standards, ensuring reliable protection against electrostatic discharge up to ±30kV air and ±25kV contact.

The USBLC6-2SC6 ESD Protection Array is ideal for portable electronics, protecting both data and power lines. Its low leakage and low operating voltage of 5V enhance performance, reducing risk in voltage-sensitive applications. This device is perfect for monitor displays and digital video interfaces, providing essential protection in a compact form factor.

Choose the USBLC6-2SC6 ESD Protection Array for reliable ESD protection in your electronic designs. With its advanced technology and robust specifications, it is a dependable choice for engineers and designers in India.

Explore reliable solutions in the Diodes & Transistors category at DNA. The USBLC6-2SC6 ESD Protection Array from a trusted Brand is essential for safeguarding your electronics. Check other "Diodes & Transistors" that we have in stock.

If you are searching for specific electronic parts, reach out to us at DNA. We can import components not available in our stock. Explore our selection of related items like Development Modules, Microcontrollers, and Power Supplies. Contact Us.

Features of USBLC6-2SC6 ESD Protection Array

• Ultra low capacitance: 0.4pF
• Low leakage: nA level
• Low operating voltage: 5V
• Low clamping voltage
• Complies with IEC 61000-4-2 standards
• ROHS Compliant
• Protects two data lines and one power line

Specification of USBLC6-2SC6 ESD Protection Array

• Package type: SOT23-6
• ESD protection: ±30kV air, ±25kV contact
• Operating voltage: 5V
• IEC61000-4-4 (EFT) 40A (5/50ns)
• IEC61000-4-5 (Lightning) : 5A

Applications of USBLC6-2SC6 ESD Protection Array

• USB 2.0 Ports
• Monitor and Flat Panel Displays
• Digital video interface (DVI)
• Gigabit Ethernet

Package Includes

• 1 X USBLC6-2SC6 - ESD Protection Array
