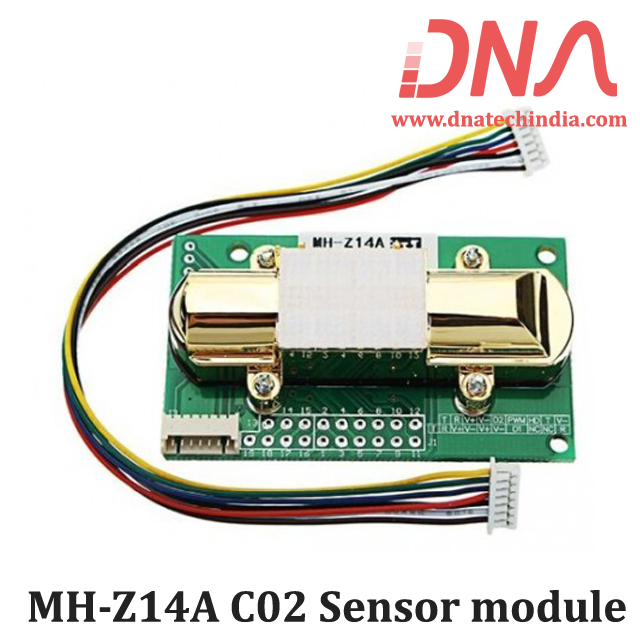

MH-Z14 C02 Sensor module

  • Brand: Winsen
  • Product Code: 1640
  • Availability: 3
  • Rs.3,658.00 (inc GST)

Shipping : Same day dispatch for Most orders if payment done before 4pm. Delivery Normally takes 2 to 7 working days depending upon your location.

If you require more quantity than what is currently in stock or you want to buy in bulk quantity e-mail us your requirements on: dnatechindia "at" gmail.com


MH-Z14 Infrared Carbon Dioxide Sensor module

MH-Z14 Infrared CO2 gas sensor module is very easy to use sensor module. This module provides output in PWM, UART as well as analog voltage thus it can be interfaced to your Microcontroller in various ways.

MH-Z14 NDIR Infrared gas module is a common type, small size sensor, using non-dispersive infrared NDIR principle to detect the existence of CO2 in the air, with good selectivity, non-oxygen dependant, long life. Built-in temperature sensor can do temperature compensation; and it has digital output and analog voltage output. MH-Z14 NDIR Infrared gas module is applied in the HVAC, indoor air quality monitoring, industrial process, safety and protection monitoring, agriculture and animal husbandry production process monitoring.


MH-Z14  NDIR CO2 Sensor module Specifications

  • working voltage: DC4-6V
  • The working current: 50mA average | - peak 100mA
  • The detection range: 0-5000ppm
  • Detection accuracy: ± 50ppm
  • Preheating time: 180S
  • Analog output voltage: 0.4-2V (linear output)
  • Digital output: serial data output (9600, N, 8,1)
  • Response time: ≤ 30S
  • Working temperature: 0 ~ 60 ℃
  • Working humidity: 0 ~ 90% RH
  • Storage temperature: -20 ~ 60 ℃
  • The service life: 5 years



MH-Z14  NDIR CO2 Sensor module Feature

  • Three ways signal output; (analog output / serial port UCHAR output)
  • The serial port Uchar signal can be accessed microcontroller IO serial port; (TTL level 9,600, N, 8,1)
  • Analog linear output 0.4-2V, the higher the concentration the higher the voltage;
  • With PWM modulation waveform output, read more convenient;
  • The module uses (NDIR) infrared technology for carbon dioxide has a good choice;
  • The module is light weight, small size, long life, good stability and so on.


MH-Z14  NDIR CO2 Sensor module  Application

This module can be widely used in HVAC and air quality monitoring, industrial process and safety monitoring, agricultural and livestock production process monitoring, and fresh air system carbon dioxide detection.


Package included: MH-Z14 Infrared CarbonDioxide Sensor with UART/Analog/PWM output
