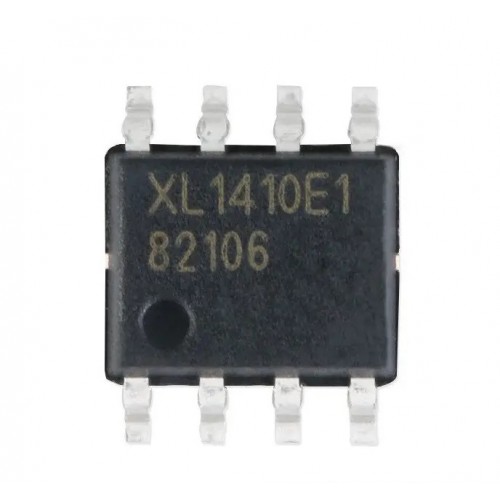

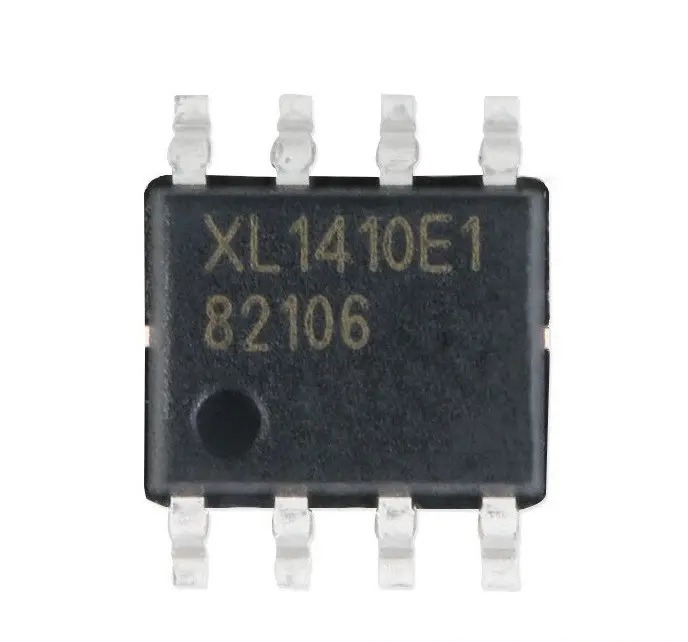

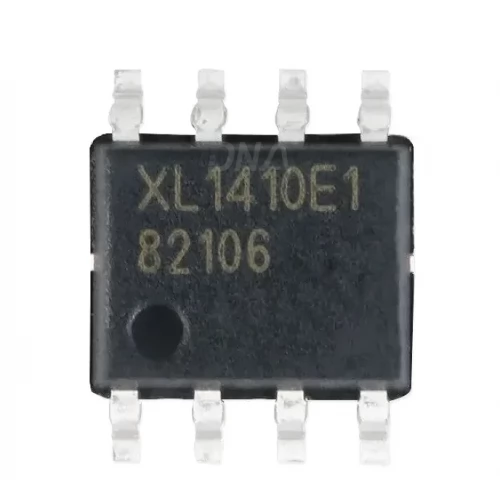

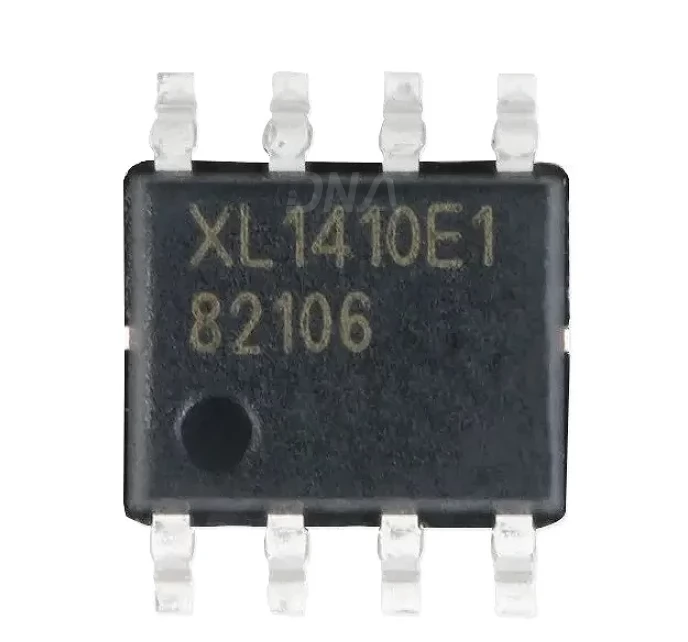

• XL1410 Step Down DC to DC Converter IC

Product Images are shown for illustrative purposes only and may differ from actual product.

XL1410 Step Down DC to DC Converter IC

  • Stock: 100
  • SKU: 3768 | DAF733
  • Rs. 41.30 (inc GST)
    Rs.35.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

 XL1410 Buck DC to DC Converter IC

 XL1410 2 Ampere 380KHz 18V Buck DC to DC Converter

The XL1410 IC from XLSEMI is a 380KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 2A load with hig efficiency, low ripple and excellent line and load regulation. Requiring a minimum number of external components, the XL1410 regulator is simple to use and include internal frequency compensation and a fixed-frequency oscillator. The PWM control circuit of XL1410 stepdown converter is able to adjust the duty ratio linearly from 0 to 100%. An enable function, an over current protection function is built inside. When short protection function happens, the operation frequency will be reduced from 380KHz to 80KHz. An internal compensation block is built in to minimize external component count.

DNA solutions, Nashik has various types of DC to DC converter IC's. Check out our complete collection of Voltage Regulator and DC to DC Converter IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of XL1410 IC

  • Internal Optimize Power MOSFET
  • High efficiency
  • Wide 3.6V to 18V Input Voltage Range
  • Available in SOP8L package
  • Maximum Duty Cycle 100%
  • Minimum Drop Out 0.6V
  • Fixed 380KHz Switching Frequency
  • 2A Constant Output Current Capability
  • Excellent line and load regulation
  • TTL shutdown capability
  • EN pin with hysteresis function
  • Built in thermal shutdown function
  • Built in current limit function
  • Built in output short protection function
  • Output Adjustable from 1.222V to 16V

Applications of XL1410 IC

  • „LCD Monitor and LCD TV
  • „Set-up Box
  • „Digital Photo Frame
  • „ADSL Modem
  • „Telecom / Networking Equipment

    Package Includes

    1 x XL1410 Step Down DC to DC Converter IC

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
