Logic Analyzer 24MHz 8Channel

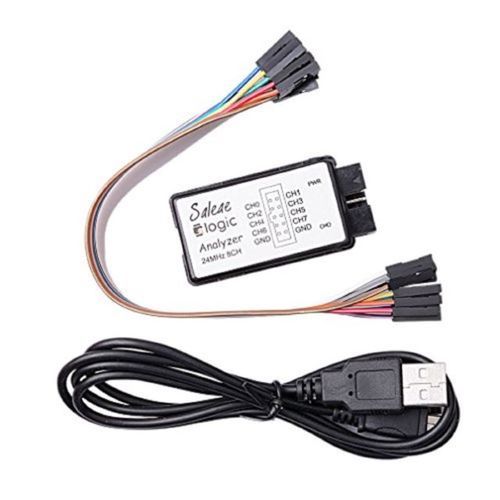

Logic Analyzer 24MHz 8 Channel Module

Logic Analyzer 24MHz 8 Channel with 10 billion samples, USB powered, supports multiple sampling rates.

The Logic Analyzer 24MHz 8 Channel Module offers an effective solution for signal analysis with eight input channels. It supports a maximum sampling rate of 24MHz and allows real-time data upload, making it ideal for various applications including I2C and UART analysis. The analyzer can capture up to 10 billion samples, ensuring you can detect even fleeting events in your electronic projects.

This logic analyzer operates within a voltage range of 0.8V to 5.25V, accommodating standard CMOS logic levels. With features like logical light indications and a USB power supply, the Logic Analyzer 24MHz 8 Channel Module is user-friendly and efficient. It comes with ten color-coded DuPont lines for easy connections, enhancing your workflow.

Engineered for both professionals and hobbyists, the Logic Analyzer 24MHz 8 Channel Module is perfect for debugging and analyzing digital signals. Whether you're working on development boards or other electronic components, this tool will support your projects effectively.

Explore the vast selection of Misc Modules at DNA. The Brand Logic Analyzer is designed to streamline your electronic projects. Discover other useful products in this category. Check other "Misc Modules" that we have in stock.

If you're searching for specific electronic components, DNA can assist you. We can help import items not in stock and support both retail and bulk orders. Browse our selection which includes DC to DC Converter Module, Humidity & Temperature Sensor, Development boards, and more. Contact Us

Features of Logic Analyzer 24MHz 8 Channel Module

• 8 input channels
• Sampling rate up to 24MHz
• Real-time data upload
• 10 billion sample capacity
• USB powered
• Supports I2C and UART

Specification of Logic Analyzer 24MHz 8 Channel Module

• Voltage range: 0.8V to 5.25V
• Input resistance: 100K Ohm
• Input capacitance: 5PF
• Maximum depth of collection: 10T

Applications of Logic Analyzer 24MHz 8 Channel Module

• Signal analysis
• Debugging electronic projects
• I2C communication
• UART signal capture
• Educational purposes

Package Includes

• 1 X Logic Analyzer 24MHz 8 Channel Module
