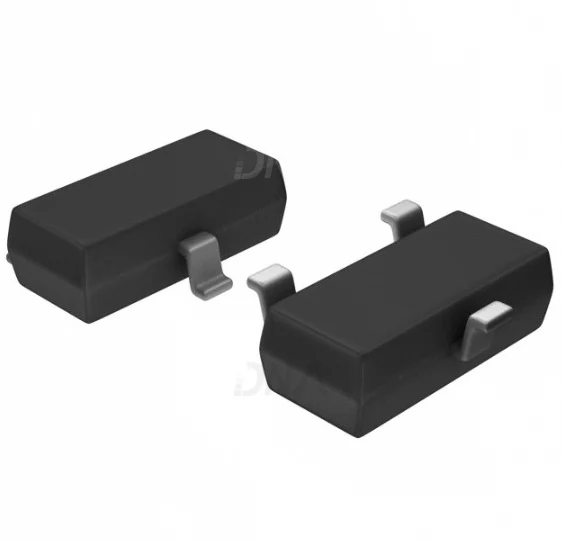

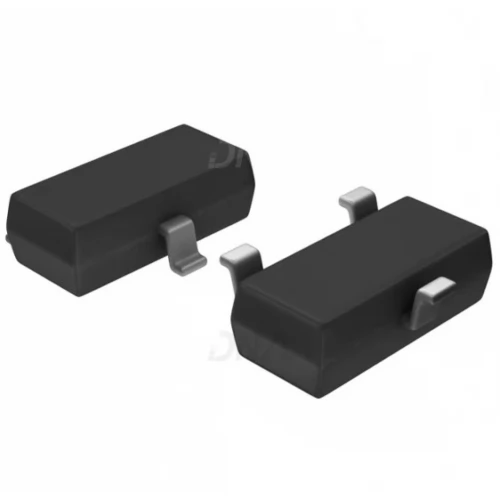

Product Images are shown for illustrative purposes only and may differ from actual product.
ESDA5V3L TVS DIODE 3VWM SOT23-3
- Stock: 25
- SKU: 8069 | DAH129
-
Rs. 46.67 (inc GST)
Rs.39.55 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
ESDA5V3L TVS DIODE 3VWM SOT23-3
ESDA5V3L TVS DIODE 3VWM SOT23-3
The ESDA5V3L is a low-capacitance bidirectional TVS diode in a compact SOT23-3 package. It is specifically designed to protect sensitive electronic components against ESD, EFT (Electrical Fast Transients), and other transient voltage events. Its low clamping voltage ensures efficient protection while maintaining signal integrity, making it suitable for high-speed data lines.
DNA solutions, Nashik has various types of Diode. Check out our complete collection of Diodes.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features of ESDA5V3L TVS DIODE 3VWM SOT23-3
- Low Working Voltage: Suitable for circuits with a 3V working voltage
- Bidirectional Protection: Capable of clamping both positive and negative voltage transients
- Low Capacitance: Typically in the range of a few picofarads, ideal for high-speed signal lines
- Fast Response Time: Reacts within nanoseconds to transient events
- Low Leakage Current: Minimizes power consumption in standby mode
- Compact SOT23-3 Package: Saves PCB space while providing effective protection
Specifications of ESDA5V3L TVS DIODE 3VWM SOT23-3
- Stand-off Voltage: 3 V
- Breakdown Voltage: Typically 5.3 V
- Clamping Voltage: Varies depending on the current
- Peak Pulse Current: Defined for 8/20 µs waveform
- Capacitance: Typically low, suitable for high-speed data lines
- Power Dissipation: Depends on the transient duration and repetition
Applications of ESDA5V3L TVS DIODE 3VWM SOT23-3
- Consumer Electronics
- High-Speed Data Lines
- Automotive Electronics
- Industrial Systems
- Telecommunication
- IoT Devices
Package Includes
1 x ESDA5V3L TVS DIODE 3VWM SOT23-3
