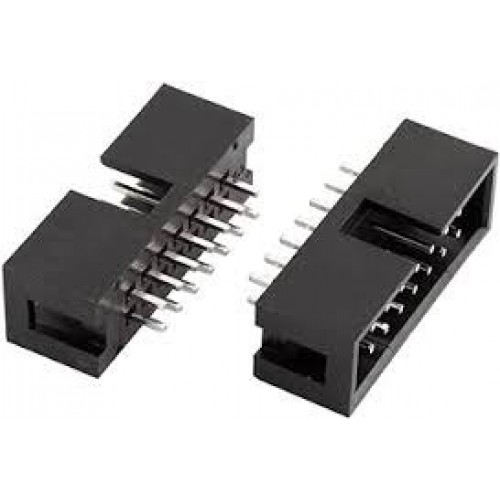

14 pin FRC Male Connector BOX TYPE

14 pin Frc Male Connector BOX TYPE

A 14-pin FRC male connector box type is a rectangular connector designed to interface with a flat ribbon cable. The connector features a box or shroud that encloses the pins, providing protection and ensuring proper alignment during mating. This type of connector is typically used with insulation displacement connectors (IDC) which allow for quick and reliable connections without the need for stripping the cable wires.

DNA solutions, Nashik has various types of Connector's. Check out our complete collection of Connector's.

• Box or Shrouded Design: Provides protection for the pins and ensures correct alignment with the mating female connector.


• Insulation Displacement Contacts (IDC): Allows for quick and easy connection to flat ribbon cables without the need for stripping the insulation from the wires.


• Pin Configuration: 14 pins arranged in two parallel rows of 7 pins each, compatible with standard 14-conductor ribbon cables.


• Polarization: Ensures correct orientation and alignment during mating to prevent incorrect connections.


Specifications of 14 pin FRC Male Connector BOX TYPE

• Number of Pins: 14


• Pin Pitch: 2.54 mm (0.1 inches)


• Current Rating: Up to 1 A per pin


• Voltage Rating: Typically 250 V


• Contact Resistance: Less than 30 mΩ


• Insulation Resistance: Greater than 1000 MΩ


• Operating Temperature Range: -55°C to +105°C


Package Includes

1 x 14 pin Frc Male Connector BOX TYPE
