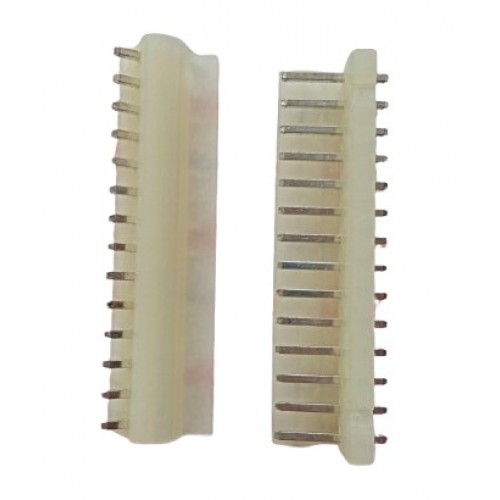

14 PIN MALE CONNECTOR 4MM PITCH

14 PIN MALE CONNECTOR 4MM PITCH

The 14-pin male connector with 4mm pitch is designed for secure, high-current, and high-voltage connections in industrial and power electronics. The 4mm spacing provides enhanced insulation and safety between pins. It features sturdy male pins for reliable connections with corresponding female headers or cable connectors. Suitable for use in control systems, power modules, and heavy-duty applications. The connector supports through-hole or panel mounting, ensuring mechanical stability. It’s RoHS compliant and built for long-term durability in demanding environments.

DNA solutions, Nashik has various types of Connector's. Check out our complete collection of Connector's.

• 14-pin male header configuration

• Wide 4mm pitch for better voltage clearance

• Suitable for power and signal connections

• Available in straight or right-angle for

• Tin-or gold-plated pins for better conductivity

• Thermoplastic housing, UL94V-0 rated

Specifications of 14 PIN MALE CONNECTOR 4MM PITCH

• Number of Pins: 14

• Pitch: 4mm

• Mounting Type: Through-Hole / Panel Mount

• Voltage Rating: Up to 250V AC/DC

• Contact Plating: Tin or Gold

• Operating Temp: –40°C to +105°C

Applications of 14 PIN MALE CONNECTOR 4MM PITCH

• Power distribution panels

• Embedded and robotic control boards

• HVAC and lighting control modules

• Motor controller interfaces

Package Includes

      1 x 14 PIN MALE CONNECTOR 4MM PITCH
