2X20 PIN BERG HOUSING WITH NOTCH CONNECTOR

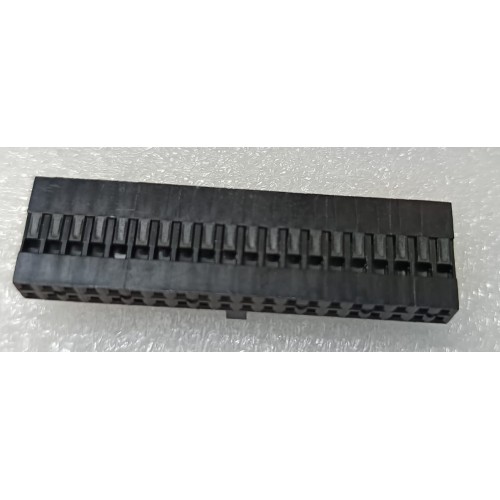

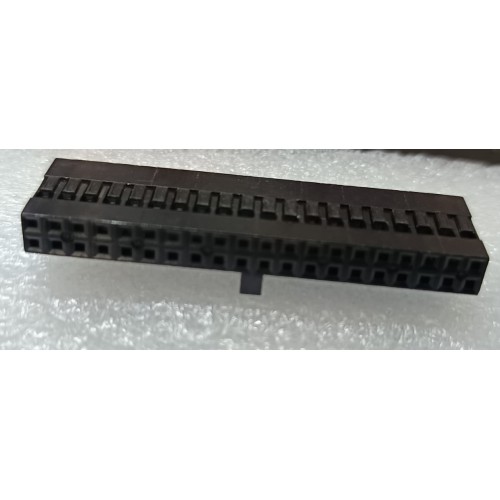

Connector 2X20 Pin Berg Housing with Notch

2X20 Pin Berg Housing Connector designed for 2.54 mm pitch with durable thermoplastic housing and polarizing notch.

The Connector 2X20 Pin Berg Housing with Notch is a reliable choice for your electronic projects. This 40-pin dual-row IDC connector housing is specifically designed for 2.54 mm pitch female IDC contacts. It features a polarizing notch to ensure proper alignment with matching male box headers. This connector is ideal for use with 40-wire FRC flat ribbon cables in embedded systems, Raspberry Pi headers, and development kits. The durable thermoplastic housing withstands various environmental conditions, making it suitable for industrial applications.

In the realm of Connectors and Cables, the Connector 2X20 Pin Berg Housing with Notch serves multiple applications, including microcontroller and development boards, industrial equipment, and control panels. With an operating temperature range of -40°C to +105°C, this connector ensures reliability in demanding environments. Its design minimizes the risk of misalignment, allowing for seamless integration into your projects.

Explore the advantages of using the Connector 2X20 Pin Berg Housing with Notch today. This connector is perfect for FPGA, CPLD, and sensor module connections, offering a secure and efficient way to manage your electronic components. Trust in its quality and performance for your next project.

At DNA, we offer a wide range of Connectors and Cables from trusted manufacturers. Explore our extensive collection to find the right components for your needs. Check other "Connectors and Cables" that we have in stock.

If you need additional electronic components, DNA is here to help. Whether you're looking for a Development Module, Power Supply, Sensor, HMI Display, DC to DC Converter IC, or Programmer, we can assist you in finding the right parts. We can also import items that are not currently available. Contact Us.

Features of Connector 2X20 Pin Berg Housing with Notch

• Dual-row 2x20 layout
• Standard 2.54 mm (0.1 inch) pitch
• Integrated polarizing notch prevents misalignment
• Designed for IDC crimped flat ribbon cables
• Durable thermoplastic housing

Specification of Connector 2X20 Pin Berg Housing with Notch

• Connector Type: IDC Berg Housing
• Number of Positions: 40
• Contact Pitch: 2.54 mm
• Housing Type: Box-style IDC housing with notch
• Polarization: Yes
• Operating Temperature: -40°C to +105°C

Applications of Connector 2X20 Pin Berg Housing with Notch

• Raspberry Pi 40-pin GPIO headers
• Microcontroller and development boards
• Industrial equipment and control panels
• FPGA, CPLD, and sensor module connections

Package Includes

• 1 X Connector 2X20 Pin Berg Housing with Notch
