Product Images are shown for illustrative purposes only and may differ from actual product.

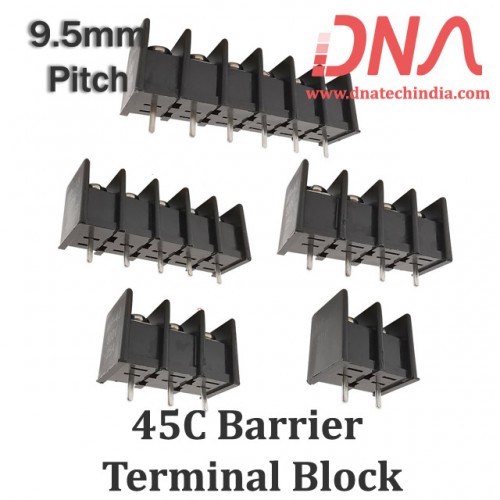

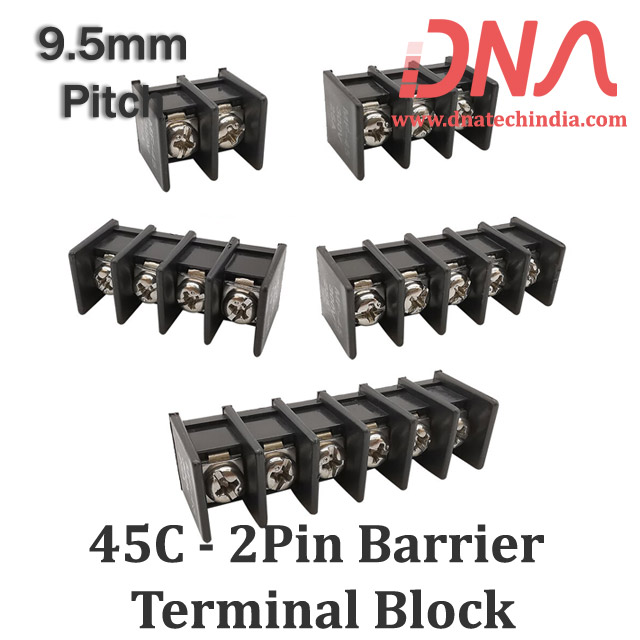

9.5mm 2 Pin Straight Barrier Terminal Block (45C Series)

  • Stock: 20
  • SKU: 3064 | DAE823
  • Rs. 16.52 (inc GST)
    Rs.14.00 + GST

    Qty :

  • Quantity Pricing (inc GST)

    5 + 17.35 25 + 15.93

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

9.5mm 2 Pin Straight Barrier Terminal Strip Connector (45C Series)

PCB Mount 2 Pin 300 Volts, 20 Ampere 9.5 mm Pitch Barrier Terminal Connector Block || 45C Series

This is a 2 pin 45C series Straight wire to Board connector.This PCB Mount Barrier Screw Terminal Block having 9.5mm pitch and 20 Ampere, 300 Volts Current Rating.

Barrier terminal blocks also know as Barrier Strips is a type of screw terminal which have insulated connections that fasten two or more wires together and have an insulating frame and a clamping system. The wire is held by the tightening of a screw.

Barrier terminal blocks can be classified into PCB Mount type and Panel Mount type. They can also be classified into Wire to Wire type & wire to Board type.

DNA Solutions has various types of screwable connectors and Barrier terminal blocks. Check our complete collection of screwable connectors and Barrier terminal blocks.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of Barrier Terminal Block

  • Type: Wire to PCB
  • Series: 45C
  • Number of Pins: 2 (Straight)
  • Pitch: 9.5 mm
  • Rated Voltage: 300 volts
  • Rated Current: 20 Ampere
  • Color: Black
  • Housing Material: PA66
  • Screws Plating: Steel, Zn plated
  • Contact Plating: Copper alloy, Sn Plated
  • Wire protector: Stainless steel

Package Includes

1 x 9.5mm 2 Pin Straight Barrier Terminal Block (45C Series)

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
