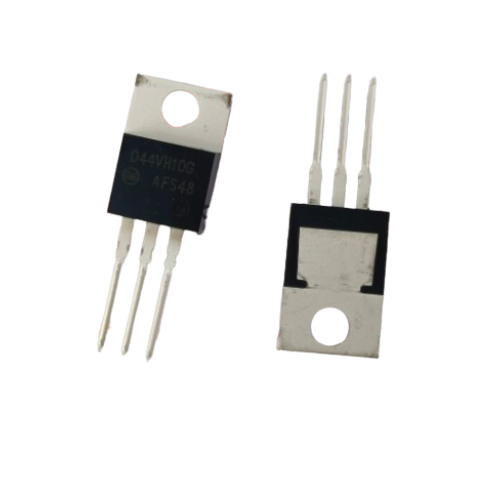

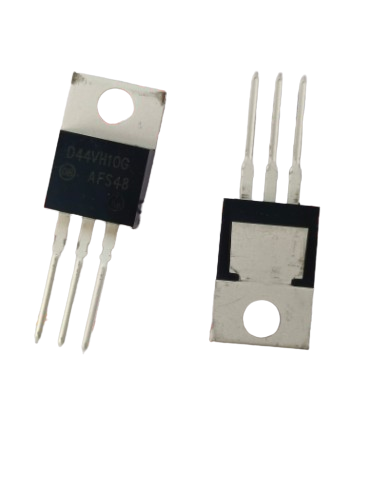

D44VH10G PNP Bipolar Junction Power Transistor

D44VH10G PNP Bipolar Junction Power Transistor

The D44VH10G is a high-power PNP Bipolar Junction Transistor (BJT) designed for applications requiring high voltage and current handling capabilities. It is commonly used in power switching, linear amplification, and motor control circuits. This transistor is housed in a TO-220 package, which provides efficient heat dissipation for high-power applications.

DNA solutions, Nashik has various types of Transistor's. Check out our complete collection of Transistor's.

• PNP Power Transistor

• High Voltage Capability: Can operate at high voltages up to 80V

• High Current Handling: Supports collector current up to 10A

• Low Saturation Voltage: Ensures efficient switching performance

• High Power Dissipation: Up to 50W, making it suitable for power applications

• Rugged and Reliable: Designed for durability in demanding conditions

Specifications of D44VH10G PNP Bipolar Junction Power Transistor

• Transistor Type: PNP

• Collector-Emitter Voltage : 80V

• Collector-Base Voltage: 80V

• Emitter-Base Voltage: 5V

• Collector Current: 10A

• Power Dissipation: 60W

• DC Current Gain: 40V - 5A

• Saturation Voltage: 2V

• Operating Temperature Range: -65°C to +150°C

• Package Type: TO-220

Applications of D44VH10G PNP Bipolar Junction Power Transistor

• Switching Power Supplies

• Linear Power Amplifiers

• Motor Control Circuits

• Voltage Regulation Circuits

• Relay Drivers

Package Includes

      1 x D44VH10G PNP Bipolar Junction Power Transistor
