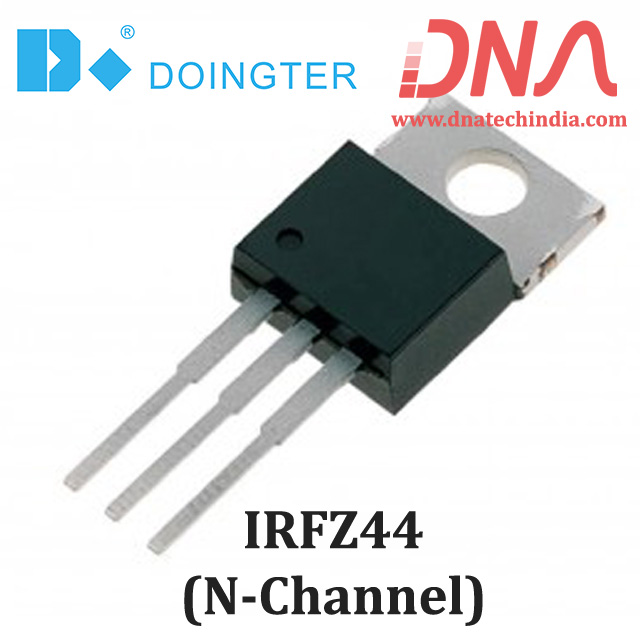

IRFZ44 N Channel Power MOSFET

IRFZ44 N Channel Power MOSFET - 60 Volts, 50 Ampere in TO-220 Package; Doingter Make

IRFZ44 Power MOSFET from Doingter is a third generation Power MOSFETs that provides the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness.

The TO-220AB package of IRFZ44  N-Channel Power MOSFET is universally preferred for commercial-industrial applications at power dissipation levels to approximately 50 Watt. The low thermal resistance and low package cost of the TO-220AB contribute to its wide acceptance throughout the industry

DNA Solutions has large collection of various types of MOSFET and IGBT's. Check our complete collection of MOSFET and IGBT.

Features of IRFZ44 Power MOSFET

• Part Number: IRFZ44

• MAKE: Doingter

• Advanced Process Technology

• Dynamic dv/dt Rating


• 175°C Operating Temperature

• Fast Switching

• Ease of Paralleling


• ID @ TC = 25°C Continuous Drain Current, VGS @ 10V 50 Ampere

• ID @ TC = 100°C Continuous Drain Current, VGS @ 10V 36 Ampere

• IDM Pulsed Drain Current 200 Ampere

• PD @TC = 25°C Power Dissipation 150 Watt

• Linear Derating Factor 1.0 W/°C

• VGS Gate-to-Source Voltage ± 20 V

Package Includes

1 x IRFZ44 N-Channel Power MOSFET
