IRF540 N-Channel Power MOSFET

IRF540 N Channel Power MOSFET

IRF540 N-Channel 100 Volts, 33 Ampere Power MOSFET

IRF540 Power MOSFET is an N-Channel enhancement mode silicon gatepower field effect transistors. They are advanced powerMOSFETs designed, tested, and guaranteed to withstand aspecified level of energy in the breakdown avalanche modeof operation. All of these power MOSFETs are designed forapplications such as switching regulators, switching converters,motor drivers, relay drivers, and drivers for high powerbipolar switching transistors requiring high speed and lowgate drive power. These types can be operated directly fromintegrated circuits.

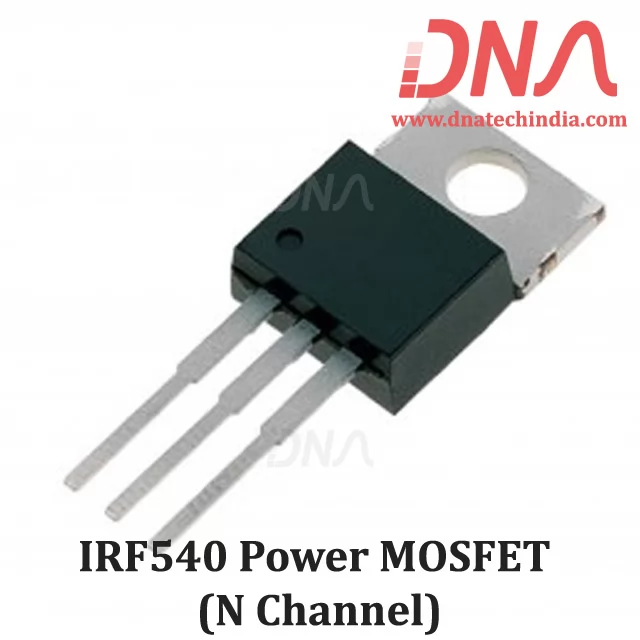

IRF540 N Channel Power MOSFET comes in TO-220 package. The TO-220 package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 watts. The low thermal resistance and low package cost of the TO-220 contribute to its wide acceptance throughout the industry.

DNA Solutions has large collection of various types of MOSFET and IGBT's. Check our complete collection of MOSFET and IGBT.

Features of IRF540 Power MOSFET

• Drain-Source Volt (Vds) : 100 Volts

• Gate-Source Volt (Vgs) : 20 Volts

• Drain-Gate Volt (Vdg) : 100 Volts

• Drain Current (Id) : 30A

• Power Dissipation (Ptot) : 150 Watt
