STMicroelectronics NUCLEO-G0B1RE STM32 Nucleo-64 Development Board

Write a review | 0 reviews

Stock: Out Of Stock
Availability: NotInStock priceValidUntil: 2026-11-16
Brand: ST Microelectronics
SKU: 11346 | DAK570

Rs. 2,938.20 (inc GST)
Rs.2,490.00 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

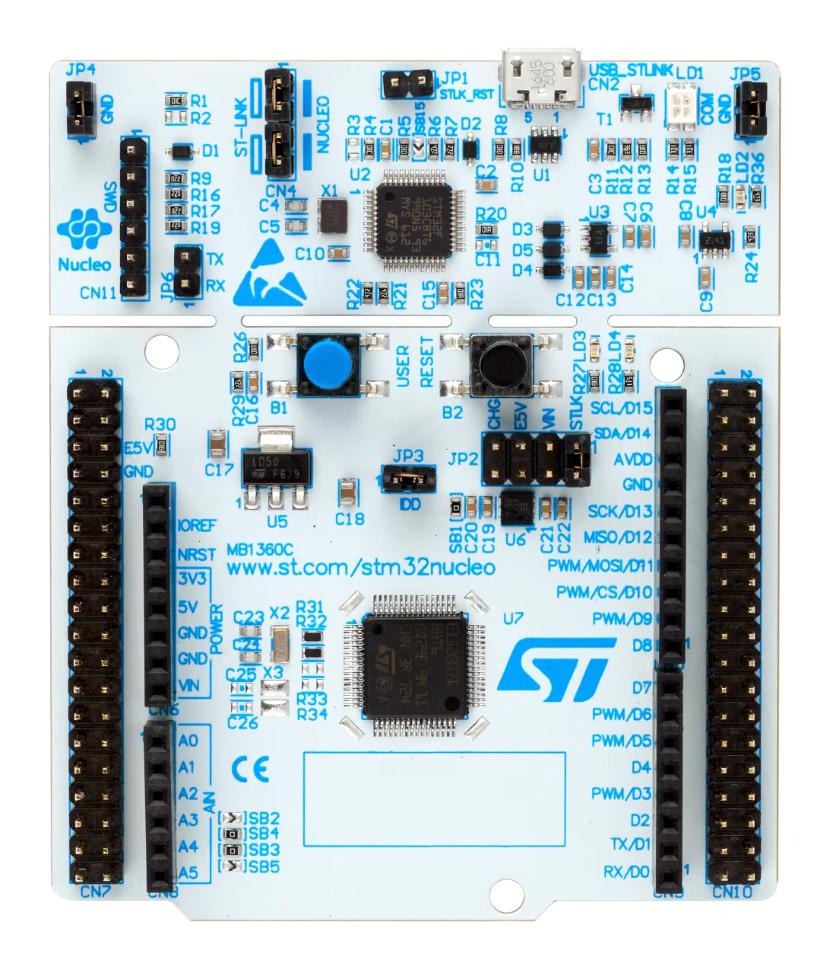

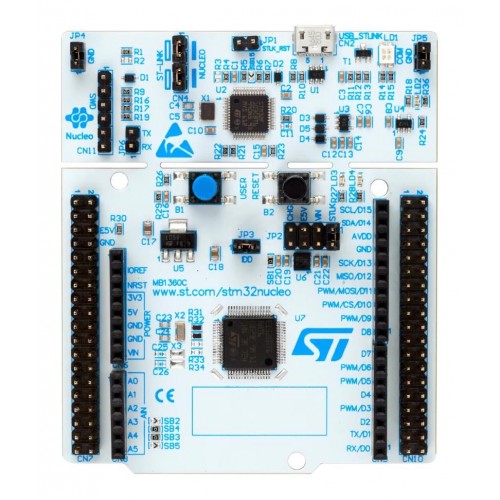

STMicroelectronics NUCLEO-G0B1RE STM32 Nucleo-64 Development Board

NUCLEO-G0B1RE STM32 Nucleo-64 development board with STM32G0B1RET6, on-board ST-LINK/V2-1 debugger and programmer, and Arduino Uno V3 expansion.

STMicroelectronics NUCLEO-G0B1RE is an STM32 Nucleo-64 development board for building and testing designs with the STM32G0B1RE microcontroller. It combines an on-board ST-LINK/V2-1 debugger and programmer with expansion connectors, so developers can work with firmware and add compatible hardware on one platform.

The ST-LINK interface provides a debug port, Virtual COM port and mass-storage mode through USB re-enumeration. ARDUINO Uno V3 and ST morpho headers support hardware expansion and access to STM32 I/O. Flexible power options let the board run from ST-LINK USB VBUS or an external source. These features make it a useful STM32 prototyping board for trying concepts and building microcontroller prototypes, with on-board debugging and programming and Arduino Uno V3 expansion.

DNA stocks STMicroelectronics STM32 development boards for embedded projects and prototype builds. Explore the range to find a board that fits your work. Check other STM32 that we have in stock

If you cannot find the part you need, contact DNA. We support Indian buyers with import requests and retail or bulk orders. You can also ask about related development boards, sensors, inductors and programmers. Contact Us

Features of STMicroelectronics NUCLEO-G0B1RE STM32 Nucleo-64 Development Board

On-board debugger and programmer support firmware development
USB re-enumeration offers mass-storage, Virtual COM and debug access
Arduino and ST morpho connectors support hardware expansion
ST morpho headers provide access to STM32 I/O
Flexible power inputs support USB or external supply
STM32Cube software libraries and examples are available, with support for several IDEs

Specifications of STMicroelectronics NUCLEO-G0B1RE STM32 Nucleo-64 Development Board

Target microcontroller: STM32G0B1RET6
Microcontroller package: LQFP64
ST-LINK interface connector: USB Micro-B
User LED: 1, shared with ARDUINO
Push-buttons: 1 user push-button and 1 reset push-button
Crystal oscillator: 32.768 kHz
Expansion connectors: ARDUINO Uno V3 connector and ST morpho extension pin headers
Power-supply options: ST-LINK USB VBUS or external sources

Applications of STMicroelectronics NUCLEO-G0B1RE STM32 Nucleo-64 Development Board

Trying out concepts and building STM32 microcontroller prototypes

Package Includes

1 X STMicroelectronics NUCLEO-G0B1RE STM32 Nucleo-64 Development Board

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
