STMicroelectronics NUCLEO-F207ZG STM32 Nucleo-144 Development Board

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-12-17

  • Brand: ST Microelectronics
  • SKU: 11074 | DAK078

Availability: NotInStock priceValidUntil: 2026-12-17

  • Rs. 4,686.00 (inc GST)
    Rs.3,971.19 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

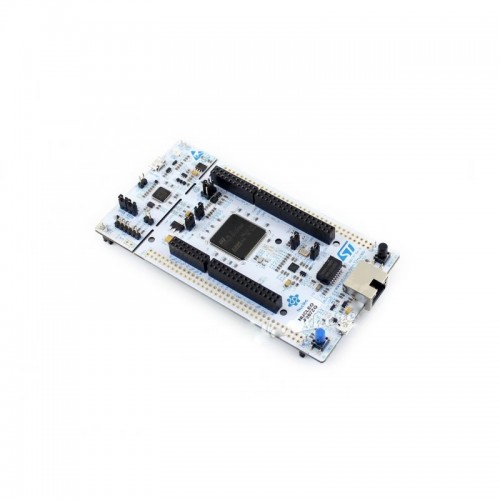

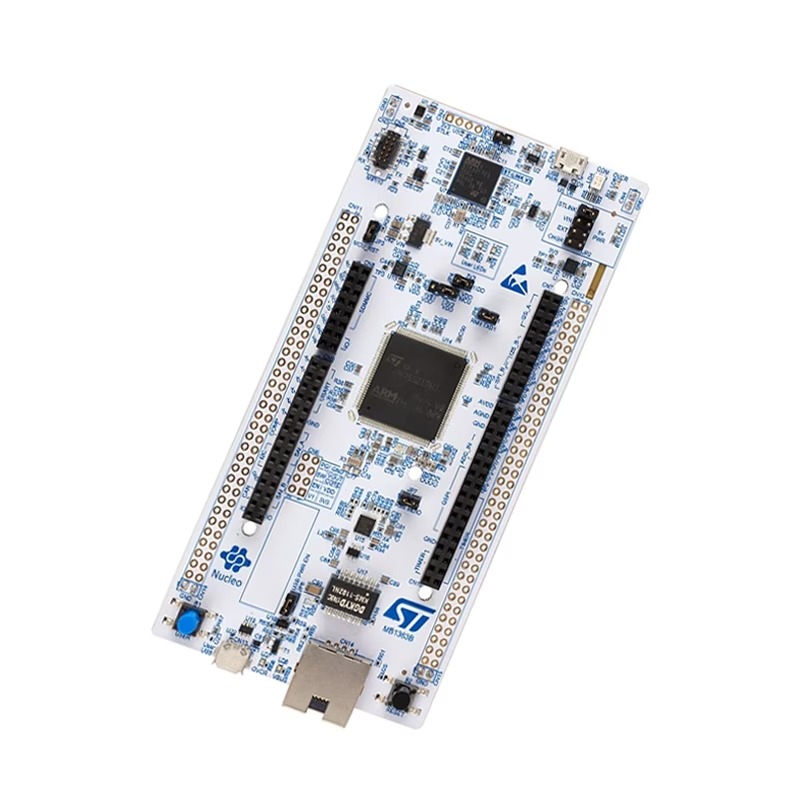

STMicroelectronics NUCLEO-F207ZG STM32 Nucleo-144 Development Board

NUCLEO-F207ZG STM32 Nucleo-144 development board with STM32F207ZGT6, on-board Ethernet and integrated ST-LINK/V2-1 debugger/programmer.

The STMicroelectronics NUCLEO-F207ZG is an STM32 Nucleo-144 development board for building and testing concepts with the STM32F207ZGT6 microcontroller. It combines on-board Ethernet with USB OTG full-speed through a Micro-AB connector, giving prototypes wired network and USB access.
An integrated ST-LINK/V2-1 debugger/programmer supports code debugging and USB re-enumeration as mass storage, a Virtual COM port or a debug port. ST Zio and ST morpho connectors provide expansion paths, while the board accepts power from ST-LINK USB VBUS, a USB connector or an external source.
Use this board to try STM32 microcontroller concepts and build prototypes. Its built-in debug and communication interfaces help teams test firmware and connect peripherals without designing a separate base board.
Explore STM32 development boards from STMicroelectronics at DNA, an electronics retailer serving customers across India. Find a platform for your next prototype and browse our available STM32 range. Check other STM32 that we have in stock
For Indian electronics buyers, DNA offers import support and retail or bulk support. If you cannot find a part, contact us to ask about sourcing it or related items such as microcontrollers, development boards, transistors, connectors, digital ICs and HMI displays. Contact Us

Features of STMicroelectronics NUCLEO-F207ZG STM32 Nucleo-144 Development Board

  • Integrated debugger/programmer supports USB re-enumeration
  • On-board Ethernet and USB OTG support prototype connectivity
  • ST Zio connector provides ARDUINO Uno V3 connectivity
  • ST morpho and SWD connectors support expansion and debugging
  • Multiple power input options support flexible bench setups

Specifications of STMicroelectronics NUCLEO-F207ZG STM32 Nucleo-144 Development Board

  • Target microcontroller: STM32F207ZGT6
  • Board reference: MB1137
  • Ethernet compliance: IEEE-802.3-2002
  • USB interface: USB OTG full-speed, Micro-AB connector
  • Crystal oscillator frequency: 32.768 kHz
  • User indicators: 3 LEDs
  • Push-buttons: 2 user push-buttons and 1 reset push-button
  • Microcontroller package: LQFP144

Applications of STMicroelectronics NUCLEO-F207ZG STM32 Nucleo-144 Development Board

  • Trying out STM32 microcontroller concepts and building prototypes

Related Links for STMicroelectronics NUCLEO-F207ZG STM32 Nucleo-144 Development Board

Package Includes

  • 1 X STMicroelectronics NUCLEO-F207ZG STM32 Nucleo-144 Development Board
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
