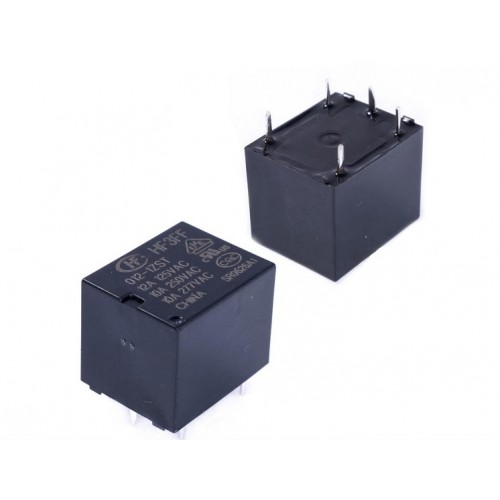

Hongfa HF3FF/012-1ZST 12 VDC 1 Form C Subminiature High-Power Relay

  • Stock: 25

    Availability: InStock priceValidUntil: 2026-12-17

  • Brand: Hongfa
  • SKU: 8718 | DAI140

Availability: InStock priceValidUntil: 2026-12-17

  • Rs. 74.34 (inc GST)
    Rs.63.00 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Hongfa HF3FF/012-1ZST 12 VDC 1 Form C Subminiature High-Power Relay

Hongfa HF3FF/012-1ZST 1 Form C relay with a 12 VDC coil, 10 A normally open contact rating and PCB termination.

The Hongfa HF3FF/012-1ZST is a 12 VDC relay with 1 Form C SPDT contacts. It switches a circuit between normally open and normally closed paths, so one control signal can select between two contact states. Its compact body suits PCB designs that need a subminiature high-power relay.
The plastic-sealed construction and PCB terminations suit board-level designs. AgSnO₂ contacts and a UL Class F insulation system form part of its design. These features help engineers select a relay that fits their switching and board assembly needs.
Use this Hongfa PCB relay in control systems, UPS systems, home appliances and security systems. Its SPDT contact arrangement supports designs that need a choice between two circuit paths.
Find Hongfa Relay products at DNA for your electronic design and sourcing needs. Browse this Hongfa part and other relay options for Indian projects. Check other Hongfa Relay that we have in stock
If you cannot find a part, contact DNA for import support. We support retail and bulk orders for Indian electronics buyers. You can also ask about DC to DC Converter Modules, Super Capacitors, Development boards, Microcontrollers, Resistors and HMI Displays. Contact Us

Features of Hongfa HF3FF/012-1ZST 12 VDC 1 Form C Subminiature High-Power Relay

  • 1 Form C contacts provide SPDT switching
  • Plastic-sealed construction
  • PCB termination for board mounting
  • AgSnO₂ contact material
  • UL Class F insulation system

Specifications of Hongfa HF3FF/012-1ZST 12 VDC 1 Form C Subminiature High-Power Relay

  • Nominal coil voltage: 12 VDC
  • Coil power: Approximately 360 mW (standard type)
  • Coil resistance: 400 Ω ±10% (at 23°C)
  • Contact rating: NO 10 A at 277 VAC or 28 VDC
  • Dielectric strength: 1500 VAC for 1 minute between coil and contacts
  • Ambient operating temperature: -40°C to 105°C (contact Hongfa if ambient temperature is above 85°C)
  • Mechanical endurance: 1 × 10⁷ operations
  • Outline dimensions: Approximately 19 × 15.2 × 15.5 mm

Applications of Hongfa HF3FF/012-1ZST 12 VDC 1 Form C Subminiature High-Power Relay

  • Control systems
  • UPS systems
  • Home appliances
  • Security systems

Related Links for Hongfa HF3FF/012-1ZST 12 VDC 1 Form C Subminiature High-Power Relay

Package Includes

  • 1 X Hongfa HF3FF/012-1ZST 12 VDC 1 Form C Subminiature High-Power Relay
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
