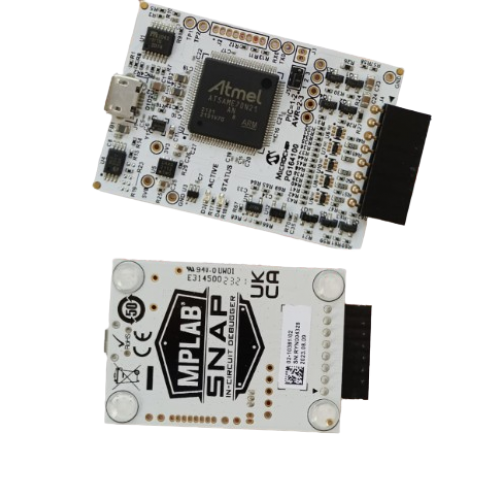

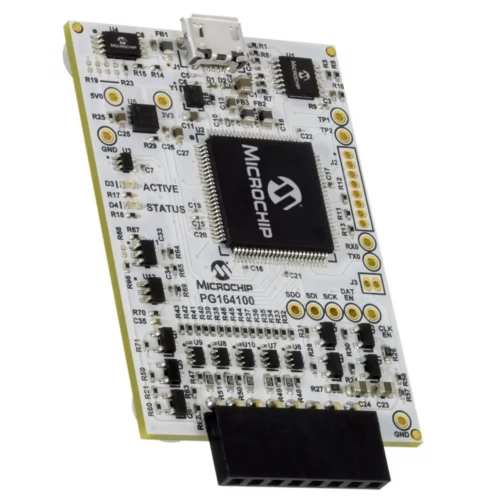

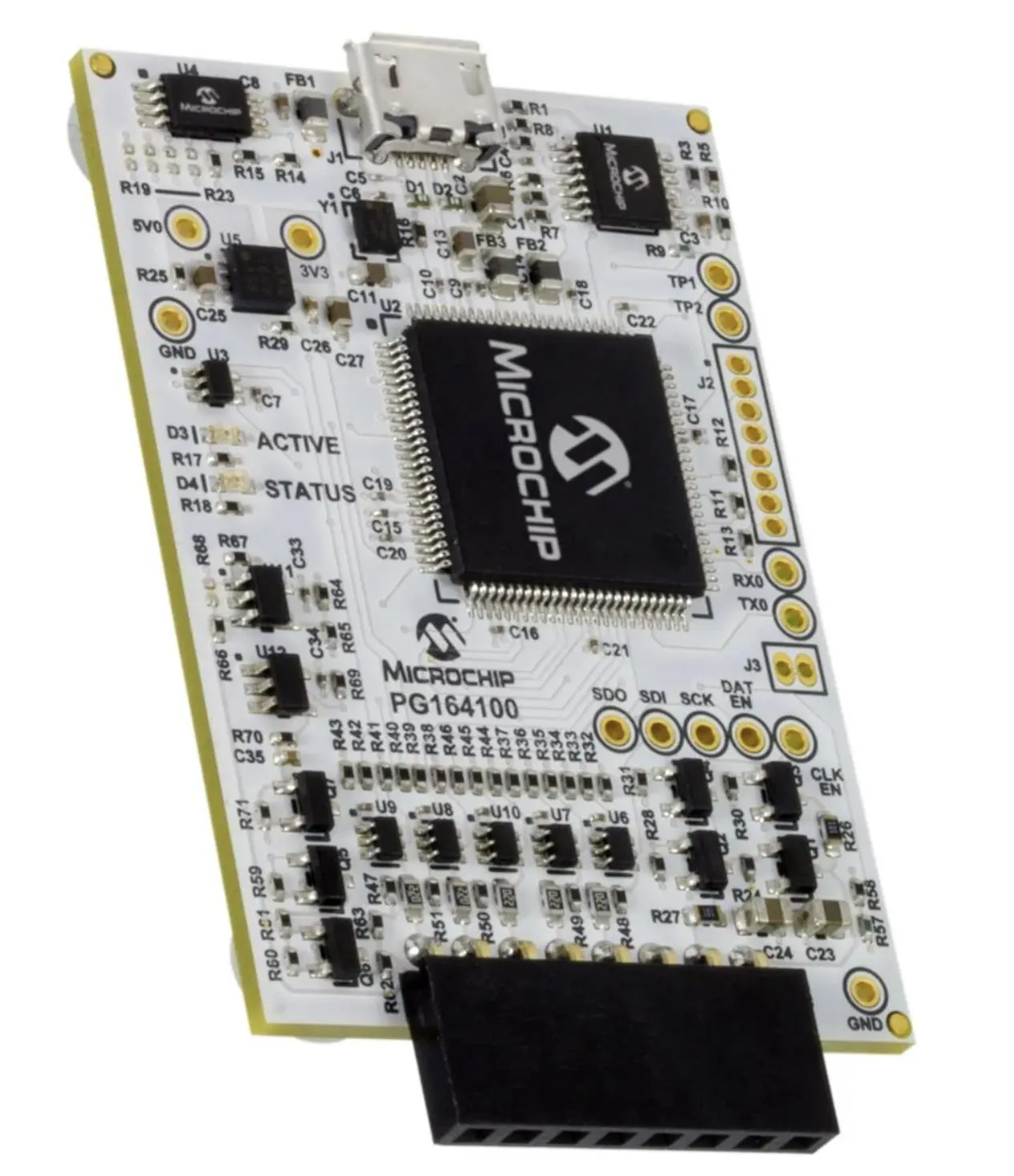

Microchip PG164100 MPLAB SNAP In-Circuit Debugger/Programmer

Microchip PG164100 MPLAB SNAP In-Circuit Debugger/Programmer

Microchip PG164100 is an MPLAB SNAP in-circuit debugger/programmer with USB 2.0, an 8-pin SIL target connector, and support for 1.2 V to 5.5 V targets.

The Microchip PG164100 MPLAB SNAP is an in-circuit debugger and programmer for supported Microchip microcontrollers and digital signal controllers. It connects to a computer over USB 2.0 and to a target board through an 8-pin SIL connector. The target voltage range is 1.2 V to 5.5 V ±10%, and the target board needs its own power supply.

Use ICSP, JTAG, or Serial Wire Debug to program devices and debug firmware in MPLAB X IDE or MPLAB IPE. Multiple breakpoints, source-code debugging, and real-time debugging at target MCU speed help you find and trace code issues. The debugger supports many PIC, dsPIC, AVR, SAM, CEC, and PIC32 devices; exact support depends on the installed IDE version.

This USB-powered Microchip debugger supports in-circuit development for compatible microcontrollers and digital signal controllers. It is intended for development, not production programming.

Shop Microchip programmers at DNA for debugging and programming supported devices. Browse our stock to find a tool that fits your development setup. Check other Programmers that we have in stock

For Indian electronics buyers, DNA offers import support and retail or bulk assistance. Contact us if you cannot find this debugger or need related Analog IC, DC to DC Converter IC, Power Supply, Development boards, LCD, or Sensor Module products. Contact Us

Features of Microchip PG164100 MPLAB SNAP In-Circuit Debugger/Programmer

• Combines in-circuit debugging with in-circuit serial programming
• Supports source-code and real-time debugging
• Provides multiple hardware and software breakpoints and a stopwatch
• Works with several debug and programming interface types
• Supports a range of Microchip MCU and DSC families

Specifications of Microchip PG164100 MPLAB SNAP In-Circuit Debugger/Programmer

• USB interface: USB 2.0, 480 Mbit/s
• Target supply voltage range: 1.2 V to 5.5 V ±10%
• Target connector: 8-pin Single In-Line (SIL)
• Debugger processor: 32-bit ARM Cortex-M7 MCU running at 300 MHz
• Supported protocols: ICSP, MIPS EJTAG 2-wire and 4-wire, ARM SWD, AVR32 JTAG 4-wire, PDI (low voltage only), UPDI (low voltage only), TPI, ISP, DEBUGWIRE, and AWIRE
• Supported operating systems: Windows 7 or later, Linux, and macOS
• Maximum USB cable length: 1.5 m with a full-featured Micro-B data-and-power cable

Applications of Microchip PG164100 MPLAB SNAP In-Circuit Debugger/Programmer

• In-circuit debugging and programming of supported Microchip microcontrollers and digital signal controllers

Related Links for Microchip PG164100 MPLAB SNAP In-Circuit Debugger/Programmer

• Microchip PG164100 MPLAB SNAP In-Circuit Debugger/Programmer Datasheet

• Other Products from Programmers Category

Package Includes

• 1 X Microchip PG164100 MPLAB SNAP In-Circuit Debugger/Programmer
