Product Images are shown for illustrative purposes only and may differ from actual product.

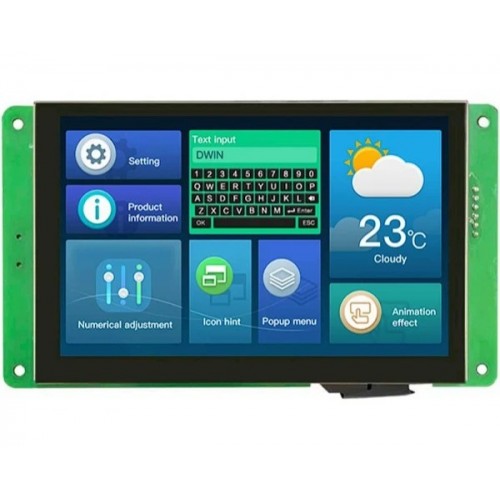

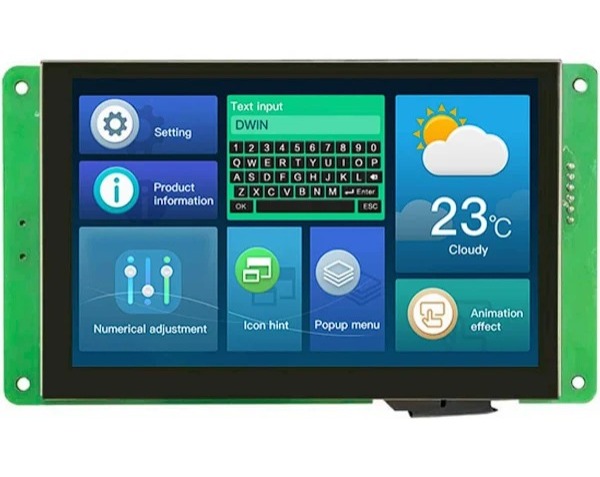

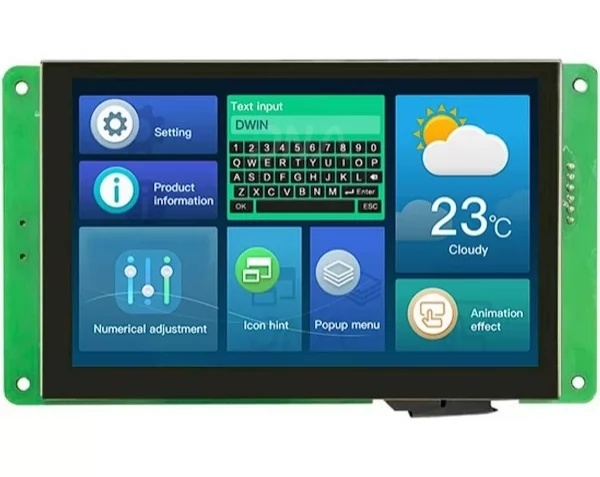

5.0 INCH 800X480 RS232 HMI LCD DISPLAY CAPACITIVE TOUCH 16MB FLASH SD INTERFACE BUZZER
- Stock: 1
- SKU: 7484 | DAH304
-
Rs. 3,504.60 (inc GST)
Rs.2,970.00 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
5.0 INCH 800X480 RS232 HMI LCD DISPLAY CAPACITIVE TOUCH 16MB FLASH SD INTERFACE BUZZER
5.0 INCH 800X480 RS232 HMI LCD DISPLAY CAPACITIVE TOUCH 16MB FLASH SD INTERFACE BUZZER
The 5.0 Inch 800x480 RS232 HMI LCD Display Capacitive Touch 16MB Flash SD interface Buzzer is developed by DWIN. The NOR Flash memory in the display is available to store the user database. The LCD is integrated with a running DGUS II system, a GUI (Graphical User Interface) development software. The pre-installed UI user interface development software can be used to develop your own design and customised features like buttons, text display, graph and slider etc. The T5L1 DWIN development software is a human-machine interface dedicated to ASIC designed by DWIN Technology for A IoT application applications. This software is based on a T5L chip that is a low-power, cost-effective dual-core 8051 processor.
DNA solutions, Nashik has various types of LCD Display's. Check out our complete collection of LCD Display's.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features of 5.0 INCH 800X480 RS232 HMI LCD DISPLAY CAPACITIVE TOUCH 16MB FLASH SD INTERFACE BUZZER
- Based on self-designed T5L2 ASIC, 16.7M Color, 24bit, 800x480 Pixel
- 5.0inch 800x480, 18bit Colors, UART Serial TFT LCD display module.
- Capacitive touch screen, G+G structure, support point touch and drag
- Download via SD card or on-line serial port
- Easy-to-use DWIN DGUS V7.6 GUIs Development, no coding skills required
- Dual Development System: DGUS II/ TA(Instruction set)
- LCD:IPS View Angle:85/85/85/85(L/R/U/D)
- With GUI & OS dual-core, GUI with rich controls. DWIN OS kernel is open to the user for the second-development, via DWIN OS language or KEIL C51
Specifications of 5.0 INCH 800X480 RS232 HMI LCD DISPLAY CAPACITIVE TOUCH 16MB FLASH SD INTERFACE BUZZER
- Display Size: 5.0 inches
- Type: Capacitive touch panel
- Resolution: 800 x 480 pixels
- Display Type: TFT LCD with capacitive touch
- Aspect Ratio: 16:9
- Color Depth: 65K colors
- Brightness: Typically around 400-500 cd/m²
Package Includes
- 1 x 5.0 INCH 800X480 RS232 HMI LCD DISPLAY CAPACITIVE TOUCH 16MB FLASH SD INTERFACE BUZZER
Frequently Asked Questions
Do you provide a GST bills?
What is your return / replacement policy?
Where are you located / where do you ship from?
What payment methods do you accept?
What details should I send for a bulk quote?
Are components original / new?
