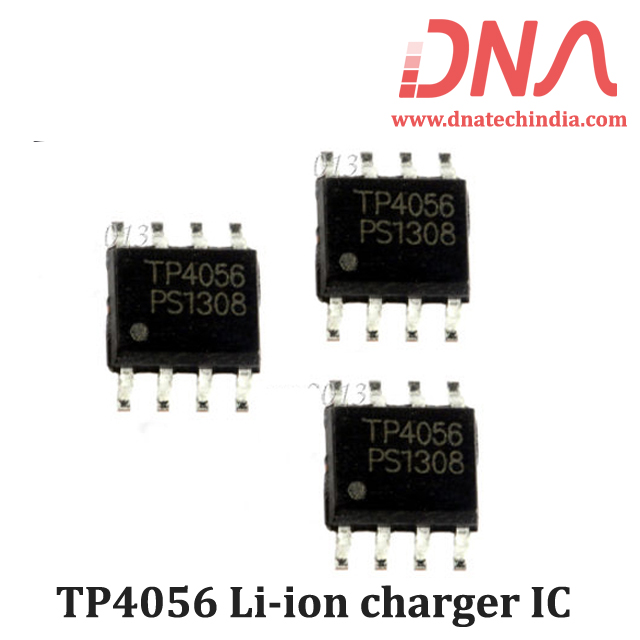

TP4056 Standalone Li-Ion Battery Charger IC

TP4056 IC is a complete constant current, constant voltage linear charger for single cell lithium ion batteries

Its SOP package and low external component count make the TP4056 IC ideally suited for portable applications. Furthermore, the TP4056 can work within USB and wall adapter. No blocking diode is required due to the internal PMOSFET architecture and have prevent to negative Charge Current Circuit. Thermal feedback regulates the charge current to limit the die temperature during high power operation or high ambient temperature. The charge voltage is fixed at 4.2 Volts, and the charge current can be programmed externally with a single resistor. TP4056 Li-ion battery charger IC automatically terminates the charge cycle when the charge current drops to 1/10th the programmed value after the final float voltage is reached. TP4056 Other features include current monitor, under voltage lockout, automatic recharge and two status pin to indicate charge termination and the presence of an input voltage.

FEATURES of TP4056 Li-ion charger IC

• Programmable Charge Current Up to 1000mA

• No MOSFET, Sense Resistor or Blocking Diode Required

• Complete Linear Charger in SOP-8 Package for Single Cell Lithium-IonBatteries

• Constant-Current/Constant-Voltage

• Charges Single Cell Li-Ion Batteries Directly from USB Port

• Preset 4.2 Volts Charge Voltage with 1.5% Accuracy

• Automatic Recharge

• Soft-Start Limits Inrush Current

APPLICATIONS of TP4056 Li-Ion battery charger IC

• Cellular Telephones, PDAs, GPS

• Charging Docks and Cradles

• Digital Still Cameras, Portable Devices

• USB Bus Powered Chargers,Chargers

Package Includes

• 1 x TP4056 Li-ion charger IC
