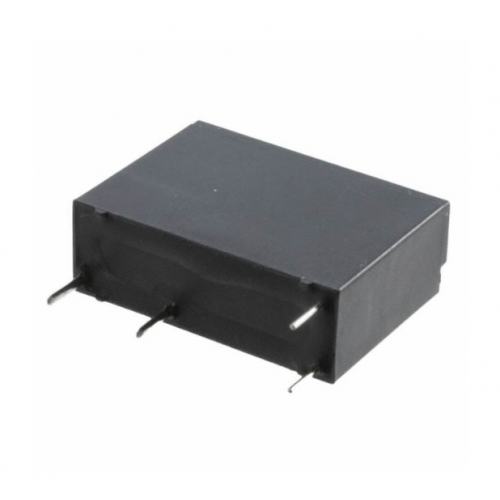

ALDP112W PANASONIC 12 Volt Relay

PANASONIC ALDP112W 12V Power Relay for Appliances

ALDP112W: 5A 277VAC Compact SPST Power Relay with low power coil and high insulation resistance.

The PANASONIC ALDP112W 12V Power Relay is a compact and efficient solution for various applications. It features a single-pole normally open (1 Form A) configuration, making it suitable for switching up to 5A at 277 VAC or 3A at 30 VDC. Its low power coil operation minimizes energy consumption, while the high insulation resistance ensures reliability in demanding environments. The relay is ideal for use in consumer appliances, lighting systems, and industrial control applications.

With a robust design, the PANASONIC ALDP112W 12V Power Relay offers exceptional durability. It withstands shock resistance up to 1,000 m/s² and features a dielectric strength of 4,000 Vrms. The relay operates effectively in a wide temperature range from -40°C to +85°C, making it versatile for different conditions. This product is UL, VDE, and CQC certified, ensuring compliance with international standards.

For those looking to enhance their systems, the PANASONIC ALDP112W 12V Power Relay is a reliable choice. Its applications span across test and measurement devices and building automation, making it a valuable component in various electronic projects. Explore its features today and see how it can meet your needs.

Explore the quality and reliability of PANASONIC products at DNA. Our range of 'Relay, Relay Socket & SSR' is designed to meet your electronic component needs. Check other 'Relay, Relay Socket & SSR' that we have in stock.

If you're searching for specific electronic components, DNA is here to assist you. We can source hard-to-find parts and offer retail and bulk options. Don't forget to check out related items like Sensors, HMI Displays, and DC to DC Converter Modules. Contact Us

Features of PANASONIC ALDP112W 12V Power Relay

• Compact 1 Form A (SPST-NO) configuration
• Rated switching capacity: 5A at 277 VAC / 3A at 30 VDC
• Coil power consumption as low as 200 mW
• High insulation resistance: 1000 MΩ
• Dielectric strength: 4,000 Vrms
• Shock resistance up to 1,000 m/s²
• UL, VDE, and CQC certified

Specification of PANASONIC ALDP112W 12V Power Relay

• Contact arrangement: 1 Form A (SPST-NO)
• Contact rating: 5A 277VAC / 3A 30VDC
• Maximum switching power: 1385 VA / 90 W
• Coil voltage: 12V DC
• Coil resistance: 720 Ω
• Operate time: ≤10 ms
• Release time: ≤10 ms
• Mechanical life: ≥ 5 million operations
• Insulation resistance: ≥ 1000 MΩ
• Operating temperature: -40°C to +85°C

Applications of PANASONIC ALDP112W 12V Power Relay

• Consumer appliances
• Industrial control systems
• Lighting equipment
• Test and measurement devices
• Building automation

Related Links for PANASONIC ALDP112W 12V Power Relay for Appliances

• Other Products from Relay, Relay Socket & SSR Category

Package Includes

• 1 X PANASONIC ALDP112W 12V Power Relay
