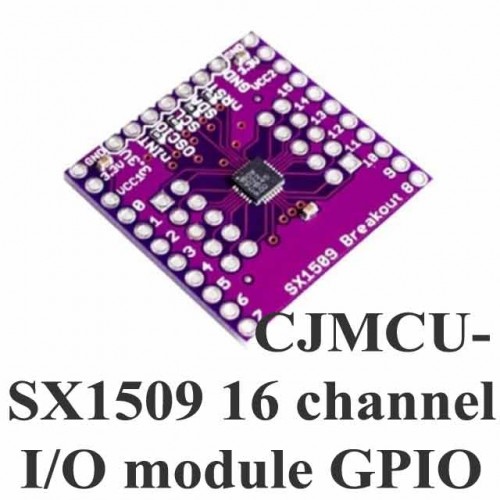

CJMCU-SX1509 16 Channel I/O Output Module GPIO

  • Stock: 5

    Availability: InStock priceValidUntil: 2026-03-08

  • Brand: Generic
  • SKU: 3260 | DAD356

Availability: InStock priceValidUntil: 2026-03-08

  • Rs. 507.40 (inc GST)
    Rs.430.00 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

CJMCU SX1509 16 Channel I/O Output Module GPIO

CJMCU-SX1509 16 channel I/O output module GPIO

The SX1507, SX1508 and SX1509 are complete ultra low voltage 1.2V to 3.6V General Purpose parallel Input/Output (GPIO) expanders ideal for low power handheld battery powered equipment. This family of GPIOs comes in 4-, 8-, 16-channel configuration and allows easy serial expansion of I/O through a standard 400kHz I2C interface. GPIO devices can provide additional control and monitoring when the microcontroller or chipset has insufficient I/O ports, or in systems where serial communication and control from a remote location is advantageous. These devices can also act as a level shifter to connect a microcontroller running at one voltage level to a component running at a different voltage level, thus eliminating the need for extra level translating circuits. The core is operating as low as 1.425V while the dual I/O banks can operate between 1.2V and 3.6V independent of the core voltage and each other (5.5V tolerant).

DNA solutions, Nashik has various types of Modules. Check out our complete collection of Module's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features

  • 1.2V to 3.6V Low Operating Voltage with Dual
  • Independent I/O Rails (VCC1, VCC2)
  • 5.5V Tolerant I/Os, Up to 15mA Output Sink on
  • All I/Os (No Total Sink Current Limit)
  • Integrated LED Driver for Enhanced Lighting
  • On-Chip Keypad Scanning Engine
  • 4/8/16 Channels of True Bi-directional Style I/O
  • Open Drain Active Low Interrupt Output (NINT)
  • Built-in Clock Management (Internal 2MHz
  • Oscillator/External Clock Input, 7 clock values)
  • 400kHz I2C Compatible Slave Interface
  • 4 User-Selectable I²C Slave Addresses
  • Power-On Reset and Reset Input (NRESET)
  • Ultra Low Current Consumption of typ. 1uA
  • -40°C to +85°C Operating Temperature Range
  • 2kV HBM ESD Protection
  • Small Footprint Packages
  • Pb & Halogen Free, RoHS/WEEE compliant

Applications

  • Cell phones, PDAs, MP3 players
  • Digital camera, Notebooks, GPS Units
  • Any battery powered equipment

Package Includes

1 x CJMCU-SX1509 16 channel I/O output module GPIO
