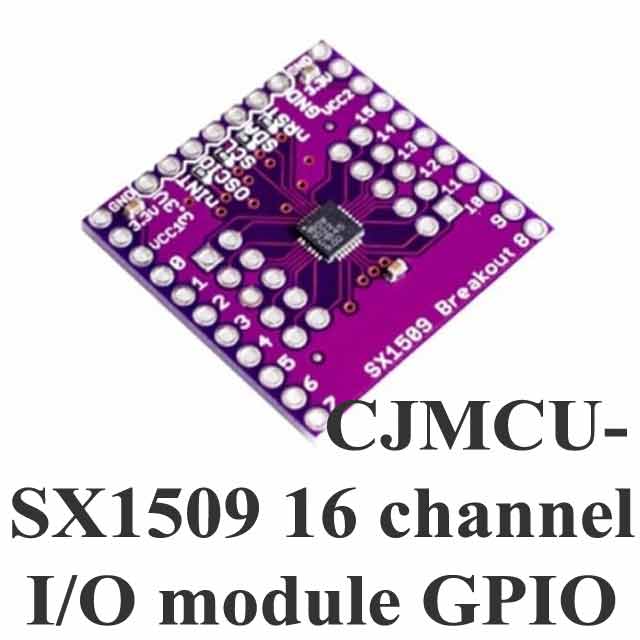

CJMCU-SX1509 16 Channel I/O Output Module GPIO

Write a review | 0 reviews

Stock: 5
Availability: InStock priceValidUntil: 2026-12-10
Brand: Generic
SKU: 3260 | DAD356

Rs. 507.40 (inc GST)
Rs.430.00 + GST
Qty : Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

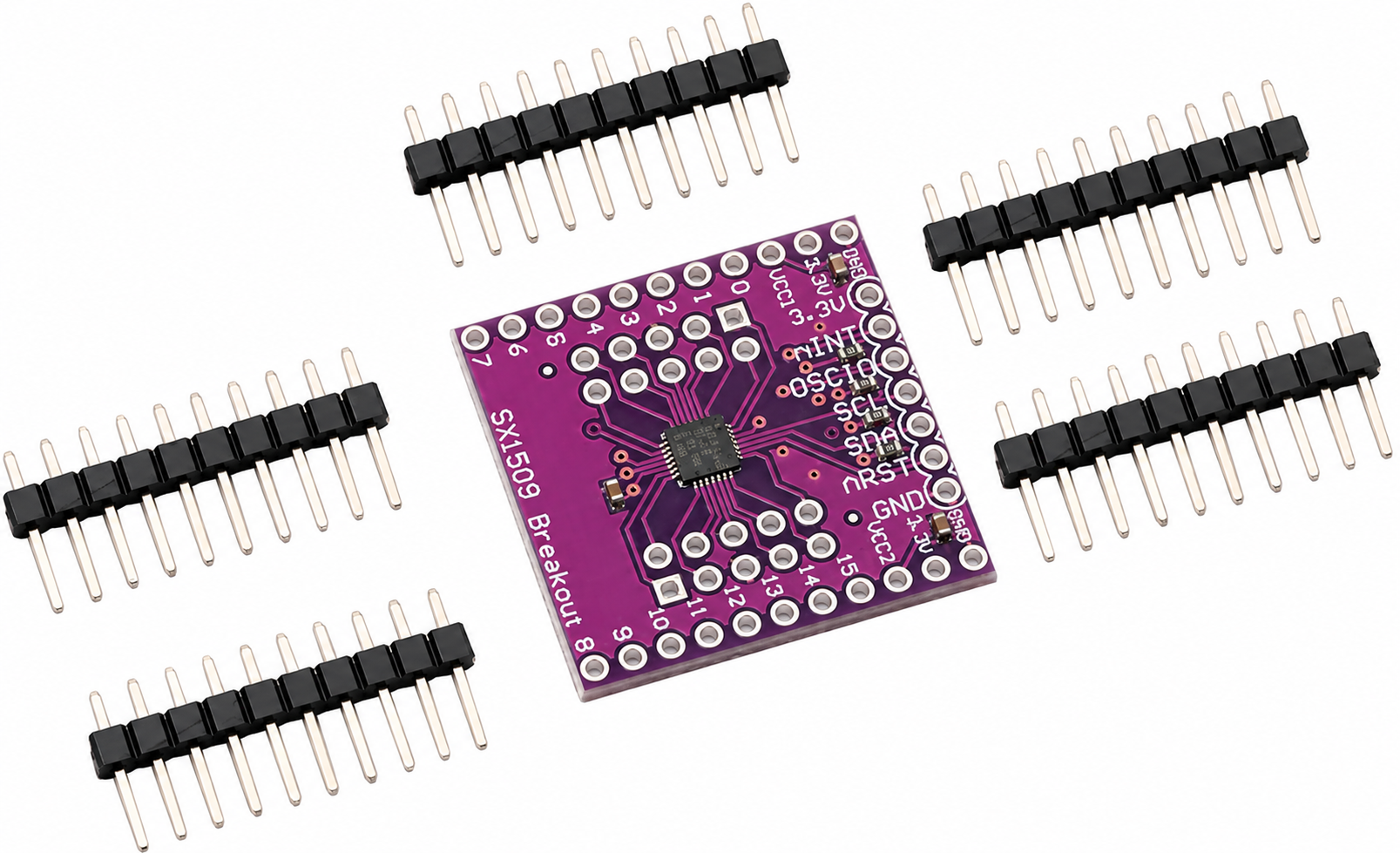

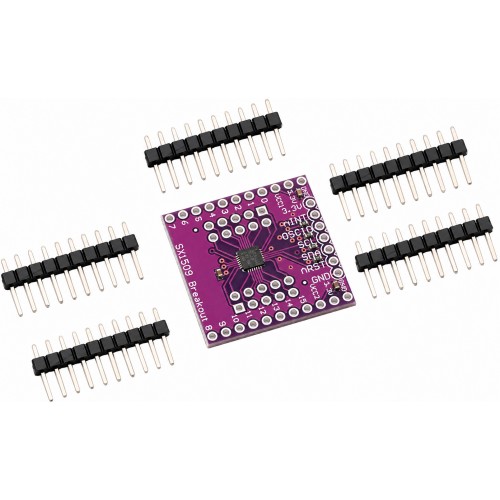

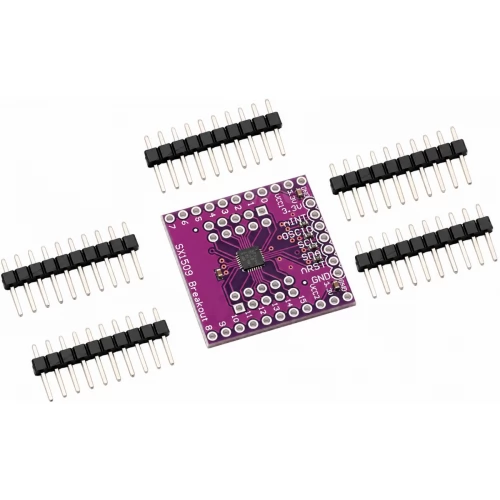

CJMCU 16 Channel I/O Output Module GPIO

CJMCU-SX1509 I/O output module with 16 channels, low voltage operation, and 400kHz I2C interface.

The CJMCU 16 Channel I/O Output Module GPIO is an efficient solution for expanding input/output options in low power devices. Operating at a voltage range of 1.2V to 3.6V, it supports dual independent I/O rails, making it suitable for diverse applications. With a maximum output sink of 15mA, this module is perfect for battery-powered equipment, including cell phones and digital cameras.

This module offers a 400kHz I2C interface for easy integration with microcontrollers, enhancing your project's capabilities. The CJMCU 16 Channel I/O Output Module GPIO also features built-in clock management, an integrated LED driver, and up to 16 channels of bi-directional I/O, ensuring flexibility in design. Its small footprint and compliance with RoHS standards make it a reliable choice for modern electronics.

Ideal for applications in handheld devices, the CJMCU 16 Channel I/O Output Module GPIO provides robust ESD protection and operates within a temperature range of -40°C to +85°C. Its versatility makes it a must-have for developers looking to optimize their designs while maintaining low power consumption.

Explore the range of Modules at DNA. The CJMCU brand offers reliable solutions for your electronic needs. Check other Modules that we have in stock.

At DNA, we understand the needs of Indian electronics buyers. If you can't find specific electronic components, reach out to us. We can import parts if they're not available. We support both retail and bulk orders. Check our offerings like Connectors, Inductor, Development boards, HMI Display, Sensor Module, and Hongfa Relay. Contact Us.

Features of CJMCU 16 Channel I/O Output Module GPIO

1.2V to 3.6V low operating voltage
Dual independent I/O rails
400kHz I2C compatible slave interface
Integrated LED driver
Built-in clock management
2kV HBM ESD protection
Pb & Halogen free, RoHS compliant

Specification of CJMCU 16 Channel I/O Output Module GPIO

Operating voltage: 1.2V to 3.6V
Output sink: 15mA
Channels: 16
Temperature range: -40°C to +85°C
I2C interface: 400kHz

Applications of CJMCU 16 Channel I/O Output Module GPIO

Cell phones
PDAs
MP3 players
Digital cameras
Battery powered equipment

Package Includes

1 X CJMCU 16 Channel I/O Output Module GPIO
