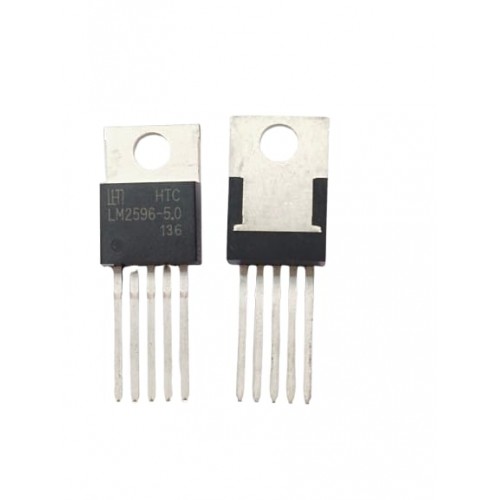

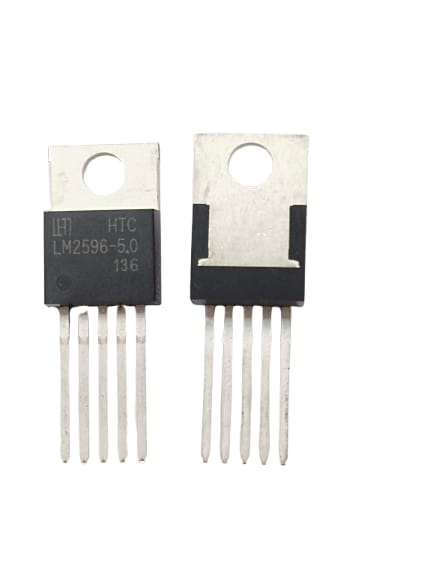

• LM2596S 5V Voltage Regulator DIP IC

Product Images are shown for illustrative purposes only and may differ from actual product.

LM2596S 5V Voltage Regulator DIP IC

  • Stock: 24
  • SKU: 9122 | DAF155
  • Rs. 54.87 (inc GST)
    Rs.46.50 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

LM2596S 5V Voltage Regulator DIP IC

LM2596S 5V Voltage Regulator DIP IC

The LM2596S-5.0 is a monolithic integrated switching regulator designed for step-down (buck) voltage regulation. It outputs a fixed 5V DC from higher voltage inputs with high efficiency. It is ideal for powering microcontrollers, sensors, and modules from batteries or adapters. This regulator operates at a switching frequency of 150 kHz, enabling smaller external components. It’s widely used in DC-DC converter modules and embedded systems.

DNA solutions, Nashik has various types of Transistor's. Check out our complete collection of Transistor's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of LM2596S 5V Voltage Regulator DIP IC

  • Fixed 5V output voltage
  • Wide input voltage range: 7V to 40V
  • Output current: up to 3A
  • High efficiency: up to 73–90%
  • 150 kHz internal oscillator
  • Thermal shutdown and current limit protection
  • Requires only a few external components
  • Ideal for on-board step-down voltage regulation

Specifications of LM2596S 5V Voltage Regulator DIP IC

  • Output Voltage: 5.0V
  • Input Voltage Range: 7V to 40V
  • Output Current: Up to 3A
  • Efficiency: Up to 90%
  • Switching Frequency: 150 kHz
  • Operating Temperature: -40°C to +125°C
  • Package Types: TO-220-5, TO-263-5, or DIP module

Applications of LM2596S 5V Voltage Regulator DIP IC

  • Battery-powered systems
  • DIY power supply modules
  • Microcontroller and Arduino power
  • Embedded electronics
  • DC-DC converter circuits
  • LED driver circuits

    Package Includes

          1 x LM2596S 5V Voltage Regulator DIP IC

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
