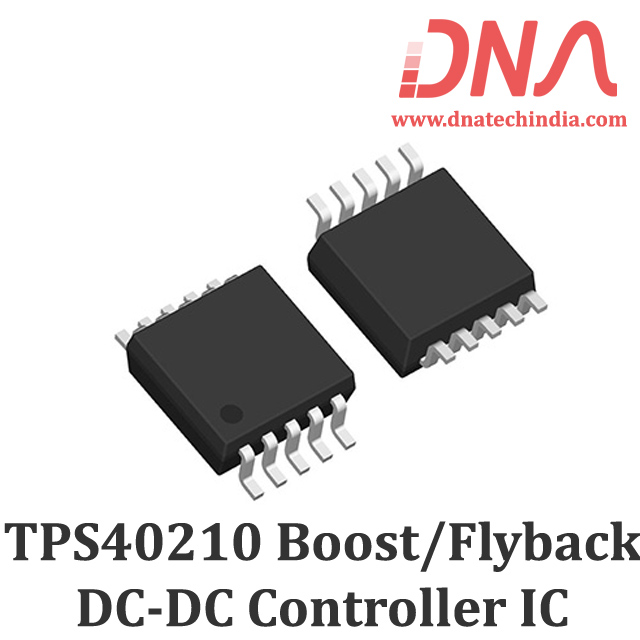

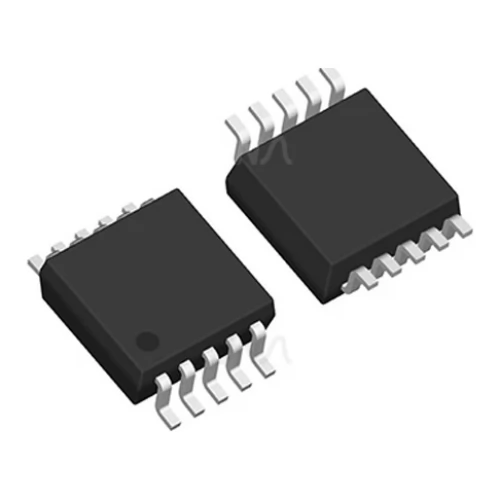

TPS40210 4.5 to 52 Volts Input Current Mode Boost Controller

TPS40210 4.5 to 52 Volts Input Current Mode Boost Controller

The TPS40210 is a wide input voltage (4.5 V to 52 V), nonsynchronous boost controllers. They are suitable for topologies which require a grounded source N-channel FET including boost, flyback, SEPIC, and various LED Driver applications. TPS40210 Boost controller IC features include programmable soft start, overcurrent protection with automatic retry, and programmable oscillator frequency. Current mode control provides improved transient response and simplified loop compensation. The main difference between the two parts is the reference voltage to which the error amplifier regulates the FB pin.

We have various types of DC to DC converter Buck & Boost IC's. Check our complete collection of voltage Regulators and Buck & Boost ICs.

Features of TPS40210 Boost Controller

• For boost, flyback, SEPIC, LED drive apps

• Wide input operating voltage: 4.5 V to 52 Volts
• Adjustable oscillator frequency
• Fixed frequency current mode control
• Internal slope compensation
• Integrated low-side driver
• Programmable closed-loop soft start
• Overcurrent protection
• External synchronization capable
• Reference 700 mV (TPS40210), 260 mV (TPS40211)
• Low current disable function

Application of TPS40201 Boost IC

• LED lighting

• Industrial control systems
• Battery powered systems

Related Link

• TPS40210 Datasheet

Package Includes

1 x TPS40210 4.5 to 52 Volts Input Current Mode Boost Controller
