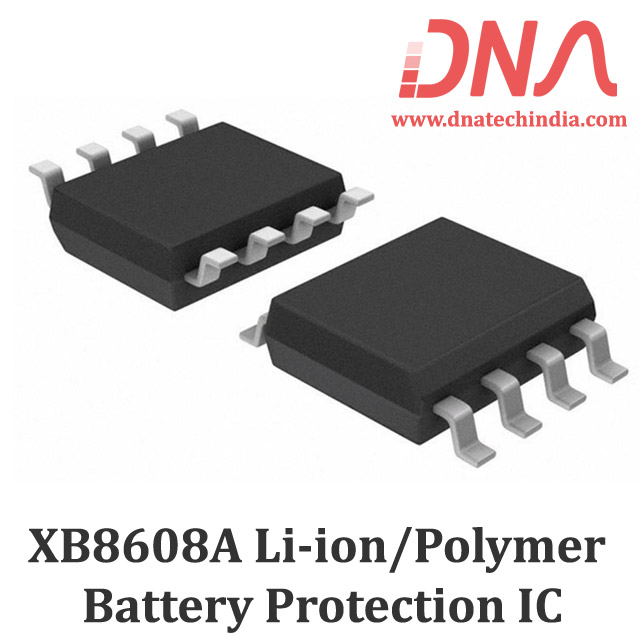

XB8608A One Cell Li-ion/Polymer Battery Protection IC

XB8608A Lithium Ion & Lithium Polymer Battery protection IC

The XB8608A Series product is a high integration solution for lithiumion/polymer battery protection. XB8608A contains advanced power MOSFET, high-accuracy voltage detection circuits and delay circuits. XB8608A comes in SOP8 package and only one external component makes it an ideal solution in limited space of battery pack.

XB8608A lithium ion and Lithium Polymer Battery Protection IC has all the protection functions required in the battery application including over charging, over discharging, over current and load short circuiting protection etc.

The accurate overcharging detection voltage ensures safe and full utilization charging. The low standby current drains little current from the cell while in storage.

The device is not only targeted for digital cellular phones, but also for any other Li-Ion and Li-Poly battery-powered information appliances requiring longterm battery life.

Features of XB8608A Battery Protection IC

• Protection of Charger Reverse Connection
• Protection of Battery Cell Reverse Connection
• Integrate Advanced Power MOSFET with Equivalent of 19mΩ RSS(ON)
• SOP8 Package
• Only One External Capacitor Required
• Over-temperature Protection
• Overcharge Current Protection
• Two-step Overcurrent Detection:
• Overdischarge Current
• Load Short Circuiting
• Charger Detection Function
• 0V Battery Charging Function
• Delay Times are generated inside
• High-accuracy Voltage Detection
• Low Current Consumption
• Operation Mode:3.9μ A typ.
• Power-down Mode: 2.2μ A typ.
• RoHS Compliant and Lead (Pb) Free

Applications of XB8608A Battery Protection IC

• One-Cell Lithium-ion Battery Pack
• Lithium-Polymer Battery Pack

Related Links

• XB8608A One Cell Li-ion/Polymer Battery Protection IC Datasheet

Package Includes

1 x XB8608A One Cell Li-ion/Polymer Battery Protection IC
