Raspberry Pi CM5004016 Compute Module 5 System-on-Module

  • Stock: 10

    Availability: InStock priceValidUntil: 2026-12-17

  • Brand: Raspberry Pi
  • SKU: 11347 | DAK575

Availability: InStock priceValidUntil: 2026-12-17

  • Rs. 19,900.70 (inc GST)
    Rs.16,865.00 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

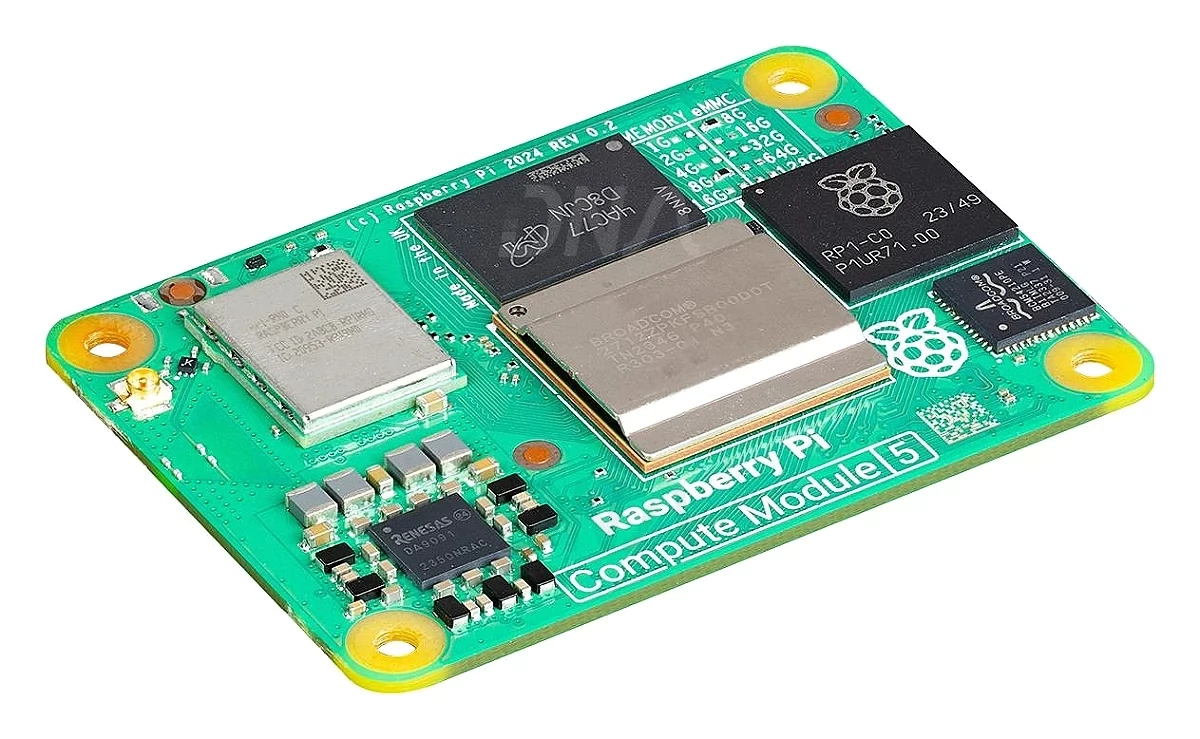

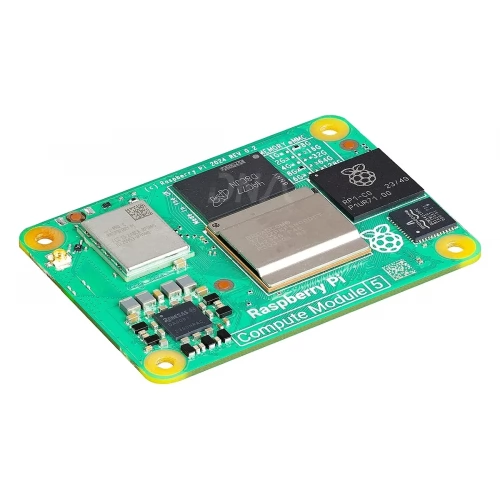

Raspberry Pi CM5004016 Compute Module 5 System-on-Module

CM5004016 Compute Module 5 system-on-module with a 2.4 GHz quad-core processor, 4 GB ECC RAM and 16 GB eMMC.

The Raspberry Pi CM5004016 Compute Module 5 is a system-on-module for integration into custom systems. Its Broadcom BCM2712 quad-core processor runs at 2.4 GHz, with 4 GB ECC RAM and 16 GB eMMC storage. This gives a compact design a capable compute core and onboard storage.
Multiple interfaces help designers connect displays, cameras, network links and peripherals. Dual HDMI outputs support 4Kp60 on both ports, while two MIPI ports support display and camera interfaces. Up to 30 GPIO can use 1.8 V or 3.3 V signalling.
This module suits embedded applications that need processing, storage and a range of wired connections in a custom system. This variant has no wireless module, so a design that needs wireless connectivity must add it separately.
DNA supplies Raspberry Pi products for engineers, makers and businesses. Explore this Compute Module 5 and other parts in our Raspberry Pi range for your next design. Check other Raspberry Pi that we have in stock
Buying electronics in India? Contact DNA for import support and retail or bulk orders. If you cannot find a part, ask us about related Power Supply, Development boards, SMPS, DC to DC Converter IC, Analog IC or LCD products. Contact Us

Features of Raspberry Pi CM5004016 Compute Module 5 System-on-Module

  • Compute module designed for integration into custom systems
  • ECC memory supports data integrity
  • Onboard eMMC provides storage on the module
  • Multiple interfaces support display, camera and peripheral connections
  • GPIO supports 1.8 V or 3.3 V signalling

Specifications of Raspberry Pi CM5004016 Compute Module 5 System-on-Module

  • Processor: Broadcom BCM2712 quad-core 64-bit Arm Cortex-A76 (Armv8) SoC, 2.4 GHz
  • RAM: 4 GB LPDDR4-4267 SDRAM with ECC
  • eMMC flash: 16 GB
  • PCIe: One x1 Gen 2 root complex, 5 Gbps
  • USB: Two USB 3.0 ports with simultaneous 5 Gbps operation and one USB 2.0 high-speed port
  • Video outputs: Two HDMI 2.0 ports, up to 4Kp60 on both simultaneously
  • MIPI ports: Two 4-lane ports for DSI display and CSI-2 camera interfaces
  • Operating temperature: -20 °C to +85 °C

Applications of Raspberry Pi CM5004016 Compute Module 5 System-on-Module

  • Embedded applications

Related Links for Raspberry Pi CM5004016 Compute Module 5 System-on-Module

Package Includes

  • 1 X Raspberry Pi CM5004016 Compute Module 5 System-on-Module
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
