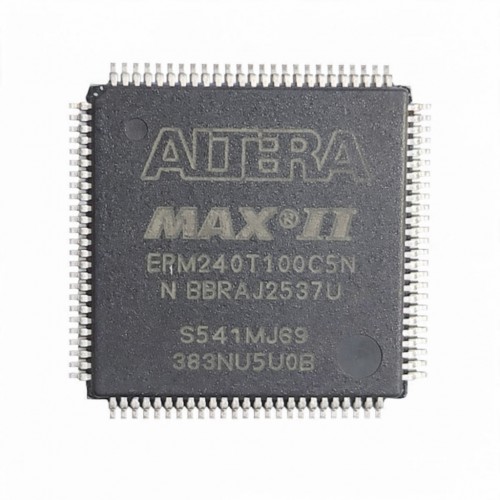

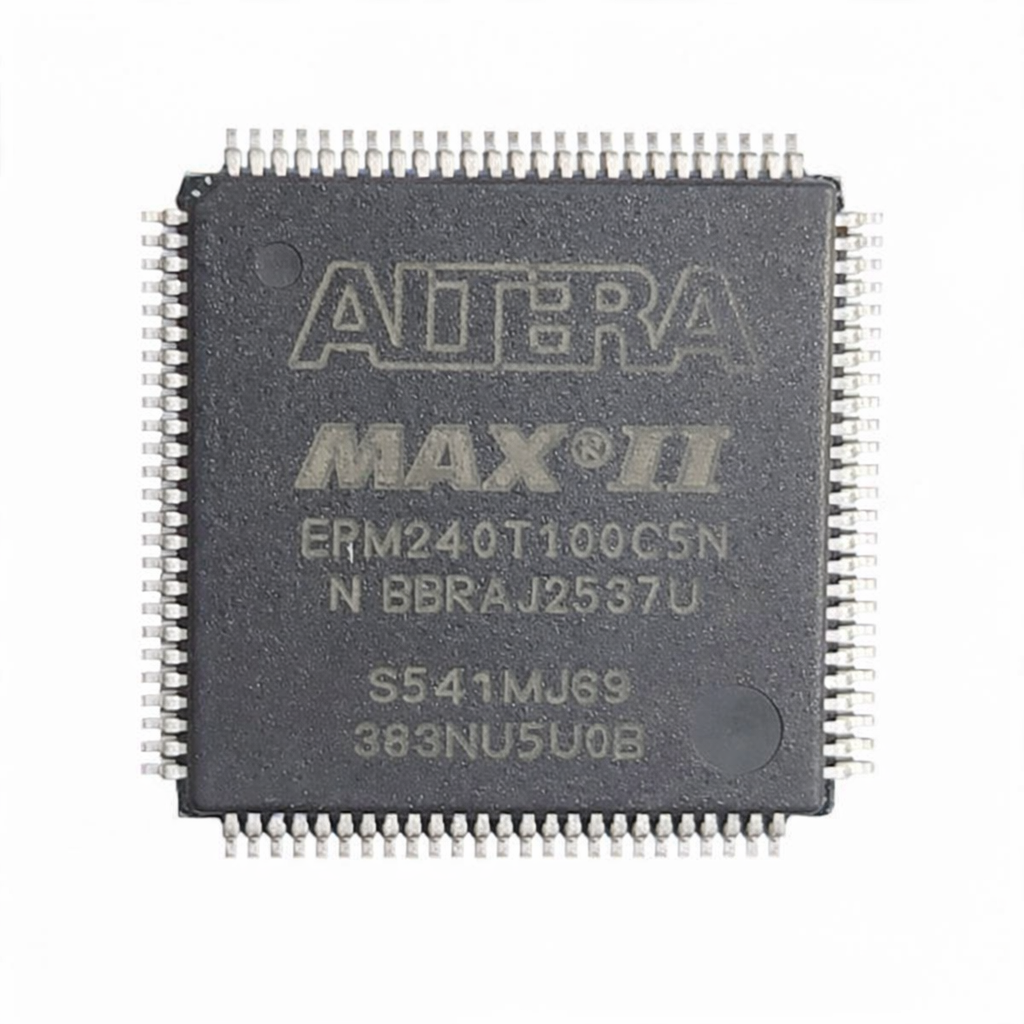

Altera EPM240T100C5N MAX II 240-Element Non-Volatile CPLD

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-12-17

  • Brand: ALTERA
  • SKU: 10734 | DAJ822

Availability: NotInStock priceValidUntil: 2026-12-17

  • Rs. 486.89 (inc GST)
    Rs.412.62 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Altera EPM240T100C5N MAX II 240-Element Non-Volatile CPLD

EPM240T100C5N is a MAX II non-volatile CPLD with 240 logic elements, 8,192 bits of user flash and up to 80 user I/O pins.

The Altera EPM240T100C5N is a non-volatile CPLD for programmable logic and control. It combines 240 logic elements with 8,192 bits of on-chip user flash in an instant-on design. This gives designers a compact way to add custom logic to an electronic system.
Its JTAG interface supports in-system programming, so engineers can program the device while it remains on the board. The device also supports hot-socketing and provides global clock lines for designs that need shared timing.
Use this MAX II programmable logic device for bus bridging, I/O expansion, power-on reset and sequencing control, or device configuration control. Its integrated logic and flash can help combine control tasks within a board design.
DNA stocks Altera components for electronics design and production. Browse our Programmers category for programming products and related parts, or contact our team for sourcing support. Check other Programmers that we have in stock
If you cannot find the part you need, contact DNA for import support and retail or bulk orders. Ask us about related items such as IGBTs, relays, digital ICs, DC to DC converter ICs and microcontrollers. Contact Us

Features of Altera EPM240T100C5N MAX II 240-Element Non-Volatile CPLD

  • Instant-on, non-volatile architecture
  • On-chip user flash memory
  • In-system programming through the JTAG interface
  • Supports hot-socketing
  • Global clock lines support shared clock distribution

Specifications of Altera EPM240T100C5N MAX II 240-Element Non-Volatile CPLD

  • Logic elements: 240
  • User flash memory: 8,192 bits
  • Maximum user I/O pins: 80 with the 100-pin TQFP package
  • Package: 100-pin TQFP
  • Speed grade: -5
  • VCCINT supply voltage: 2.5 V or 3.3 V
  • VCCIO supply voltage: 1.5 V, 1.8 V, 2.5 V or 3.3 V
  • Operating junction temperature: 0°C to 85°C

Applications of Altera EPM240T100C5N MAX II 240-Element Non-Volatile CPLD

  • Bus bridging
  • I/O expansion
  • Power-on reset and sequencing control
  • Device configuration control

Related Links for Altera EPM240T100C5N MAX II 240-Element Non-Volatile CPLD

Package Includes

  • 1 X Altera EPM240T100C5N MAX II 240-Element Non-Volatile CPLD
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
