  • T1023 Pulse Transformer

Product Images are shown for illustrative purposes only and may differ from actual product.

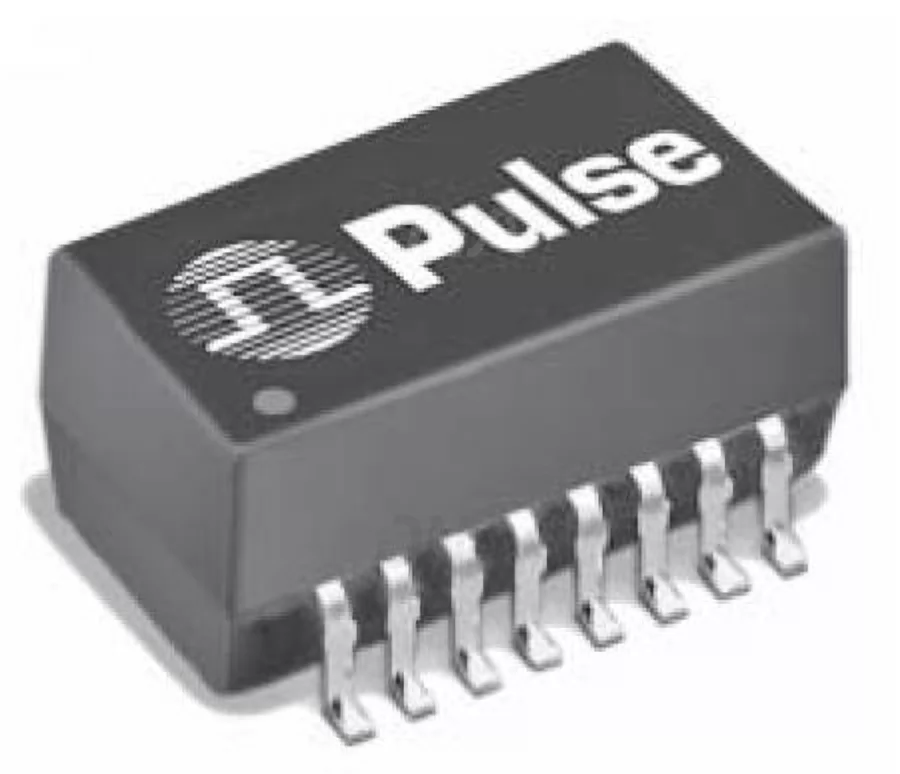

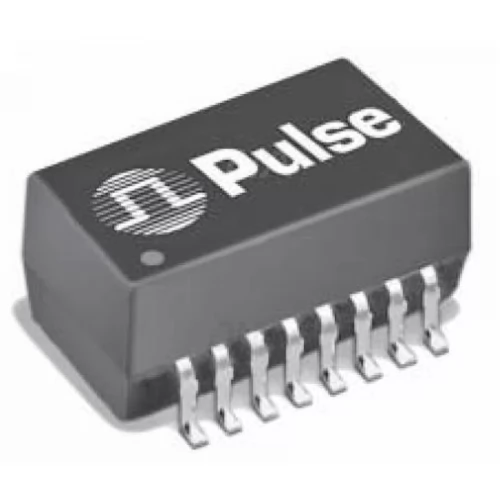

T1023 Pulse Transformer

  • Stock: 3
  • SKU: 0889 | DAA412
  • Rs. 105.02 (inc GST)
    Rs.89.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

T1023 Pulse Transformer

Pulse transformer is basically used to provide isolation in application where small burst of rectangular pulses are needed.

What is Pulse Transformer?

Pulse transformer for some applications also gate transformer or gate drive transformer or trigger transformer or wide band transformer or signal transformer is a type of transformer optimised and designed for transmission of voltage pulses between its windings and into the load. Pulse transformer is basically used to provide isolation in application where small burst of rectangular pulses are needed.

Features of T1023

  • RoHS : No

  • Termination Style : SMD/SMT

  • Frequency Range : 10 MHz

  • Primary Impedance : 0.7 Ohms, 0.7 Ohms

  • Isolation Voltage : 1.5 kV

  • Operating Temperature Range : 0 C to + 70 C

  • Number of Channels : Dual

  • Product : LAN

  • Type : Module

  • Application : T1/CEPT/ISDN-Pri

  • Length : 12.83 mm

  • Width : 7.11 mm

  • Height : 6.22 mm

  • Brand : Pulse

  • Primary Resistance : 0.7 Ohms

  • Shielding : Unshielded

Application of Pulse Transformer

Pulse transformers can be used for signal transmission, low-power control circuits, camera flashes, radar systems, high-power switched-mode power supplies and other fields where pulsed form of relatively high voltage along with isolation is required.
