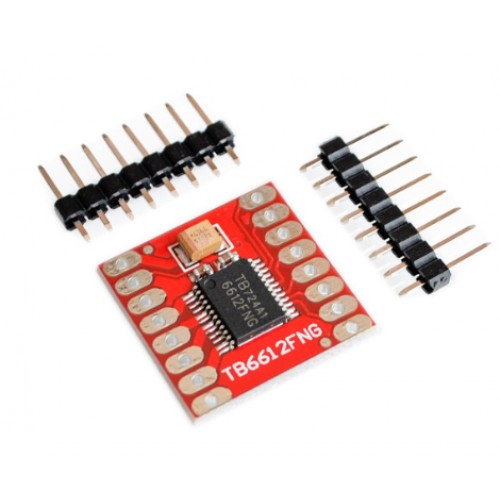

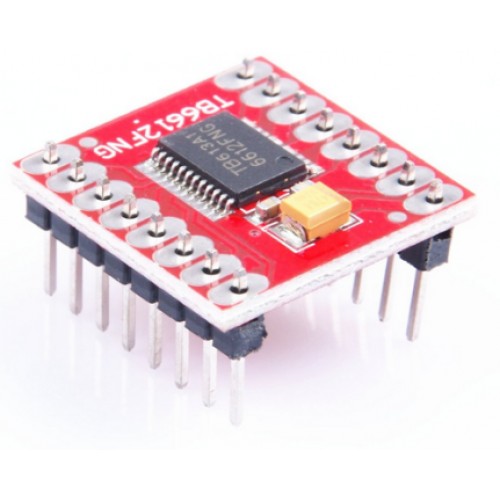

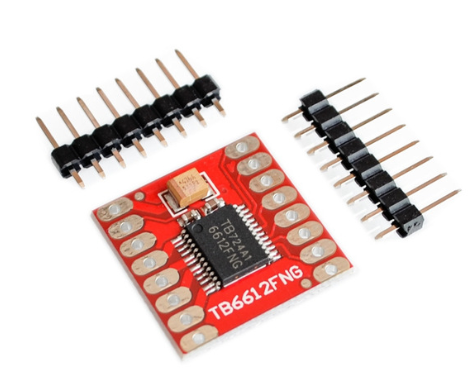

TB6612FNG Motor Driver Module

TB6612FNG Motor Driver Module

TB6612FNG Module controls 2 DC motors at 1.2A, supports PWM speed control and multiple modes.

The TB6612FNG Motor Driver Module is designed for efficient control of two DC motors. It operates at a constant current of 1.2A, with a peak capability of 3.2A. Users can easily switch between four operational modes including CW, CCW, short-brake, and stop. With PWM input signal support up to 100kHz, it allows for precise speed control, making it suitable for various applications in robotics and automation. Logic supply voltage ranges from 2.7-5.5VDC, while motor supply voltage can be up to 15VDC.

This module features a compact design with all components pre-installed. The TB6612FNG Motor Driver Module includes decoupling capacitors on both supply lines, enhancing stability. The pin arrangement makes it user-friendly, with separate headers for input and output connections. Ideal for hobbyists and engineers alike, this module simplifies motor control tasks and enhances project efficiency.

Explore the versatility of the TB6612FNG Motor Driver Module for your next project. Whether you are building a robot or automating a system, its reliable performance and ease of use will meet your needs effectively. Optimize your designs with this essential electronic component.

At DNA, we offer the reliable TB6612FNG Motor Driver Module. This essential component in the Motor Driver Modules category will enhance your projects. Explore our range of Motor Driver Modules for varied applications. Check other Motor Driver Modules that we have in stock.

If you're searching for specific electronic components, reach out to us. We can help you find parts like Transistors, Microcontrollers, or even import unique items. We support both retail and bulk purchases. Contact Us.

Features of TB6612FNG Motor Driver Module

• Controls 2 DC motors
• Supports PWM speed control
• Operates at 1.2A continuous current
• 4 operational modes
• Compact design with pre-installed components

Specification of TB6612FNG Motor Driver Module

• Logic supply voltage: 2.7-5.5VDC
• Motor supply voltage: up to 15VDC
• Output current: 1.2A per channel
• Peak current: 3.2A
• PWM frequency: up to 100kHz

Applications of TB6612FNG Motor Driver Module

• Robotics
• Automation projects
• DIY electronics
• Motor control systems
• Remote-controlled vehicles

Related Links for TB6612FNG Motor Driver Module

• Other Products from Motor Driver Modules Category

Package Includes

• 1 X TB6612FNG Motor Driver Module
