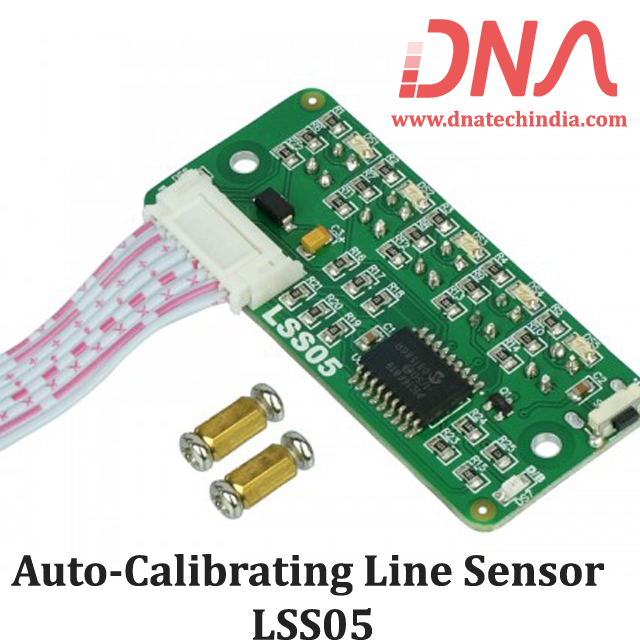

Auto-Calibrating Line Sensor LSS05

  • Stock: 3
  • Brand: Cytron
  • SKU: 2279 | DAB956
  • Rs. 1,039.12 (inc GST)
    Rs.880.61 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

Auto-Calibrating Line Sensor LSS05

Auto-Calibrating Line Sensor

It is being used in AGV (Automated Guided Vehicle) and allow robots to navigate and perform tasks. There are many type of line sensing method, if you use normal Infrared trasnmitter and receiver, it will be very troublesome to calibrat Well, this very simple to calibrate line sensor might help you.
This Auto-calibrating line sensor is super easy to use. Comes with 5 pairs of IR transmitter and receiver. It can easily covers and detects line width of 1cm to 3cm, dark color or bright color. After power up, 1 press to the push button (at the side), it starts "scanning" the surface under it, calibrating the threshold between dark and bright. It takes just 4 to 5 seconds only. Once calibration is done, these settings are stored in internal non-volatile memory, it will still "recognize" the line even after power recylce (Off and On) again. The outputs are digital (0V or 5V) to indicate line detected or no line, so reading the line position is as simple as reading digital signal.

We have Various sizes of Motor Driver Modules. Check out our complete collection of Motor Driver Modules


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features:

  • 5V power, reserve polarity protected
  • 5 digital outputs representing logic of 5 IR sensor, represented with indicator each.
  • Sensor refresh rate at ~100Hz, each sensor.
  • Combine with MC40A or for line following robot development
  • Arduino lover, checkout the new 2A motor shield or 3A motor shield, both come with socket for LSS05
  • Optional Breakout board to standard 0.1" pads, BB-2020-08H
  • Comes with 2 x 3mm mounting hole
  • Dimension : 28mm x 64mm

Packing List:

  • 1 x LSS05 board
  • 1 x LSS05 Cable
  • 2 x 8mm PCB spacer (screw/screw)

Related Links

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
