20 PIN DIP PLCC IC SOCKET

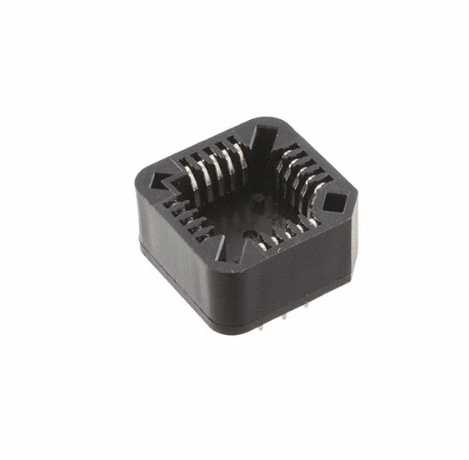

20 PIN DIP PLCC IC Socket Adapter for Easy IC Insertion

20 PIN DIP PLCC IC SOCKET for 20-pin PLCC ICs; 1.27 mm pitch; Reusable and preserves IC integrity.

The 20 PIN DIP PLCC IC Socket Adapter simplifies the insertion and removal of 20-pin PLCC ICs on through-hole PCBs. This socket features a 1.27 mm pitch for PLCC footprints and a 2.54 mm pitch for DIP pads, making it ideal for programming, testing, and replacing ICs without soldering. Its durable plastic body and gold/tin plated contacts ensure reliability and longevity.

With the 20 PIN DIP PLCC IC Socket Adapter, users can easily prototype on breadboards and PCBs, as well as perform repairs on legacy PLCC ICs. It operates effectively within a temperature range of –40 °C to +105 °C, ensuring performance in various conditions. This socket is reusable, preserving the integrity of your ICs during thermal rework, making it a valuable tool for electronics enthusiasts and professionals alike.

Explore the benefits of the 20 PIN DIP PLCC IC Socket Adapter for microcontroller programming and debugging. It provides a seamless solution for those needing to work with PLCC ICs. The versatile design allows for easy integration into your electronic projects.

Discover high-quality IC base & Sockets at DNA Solutions. We offer a wide range of products from trusted manufacturers. Explore our extensive collection and enhance your electronics projects. Check other "IC base & Sockets" that we have in stock.

If you're searching for specific electronic components, DNA is here to help. We can import parts not listed on our site. Whether you need microcontrollers, programmers, sensors, or development modules, just let us know. We support both retail and bulk orders. Contact Us.

Features of 20 PIN DIP PLCC IC Socket Adapter

• Supports 20-pin PLCC ICs
• Converts to standard 20-pin DIP footprint
• Ideal for IC programming and prototyping
• Plastic body with gold/tin plated contacts
• Reusable and preserves IC integrity

Specification of 20 PIN DIP PLCC IC Socket Adapter

• PLCC Pitch: 1.27 mm
• DIP Pitch: 2.54 mm (0.1″)
• Housing Material: Plastic
• Mounting: Through-hole soldered DIP legs
• Operating Range: –40 °C to +105 °C

Applications of 20 PIN DIP PLCC IC Socket Adapter

• Microcontroller programming and debugging
• Repair/replacement of legacy PLCC ICs
• Prototyping on breadboards and PCBs
• Preserving ICs during thermal rework

Package Includes

• 1 X 20-pin DIP PLCC IC Socket Adapter
